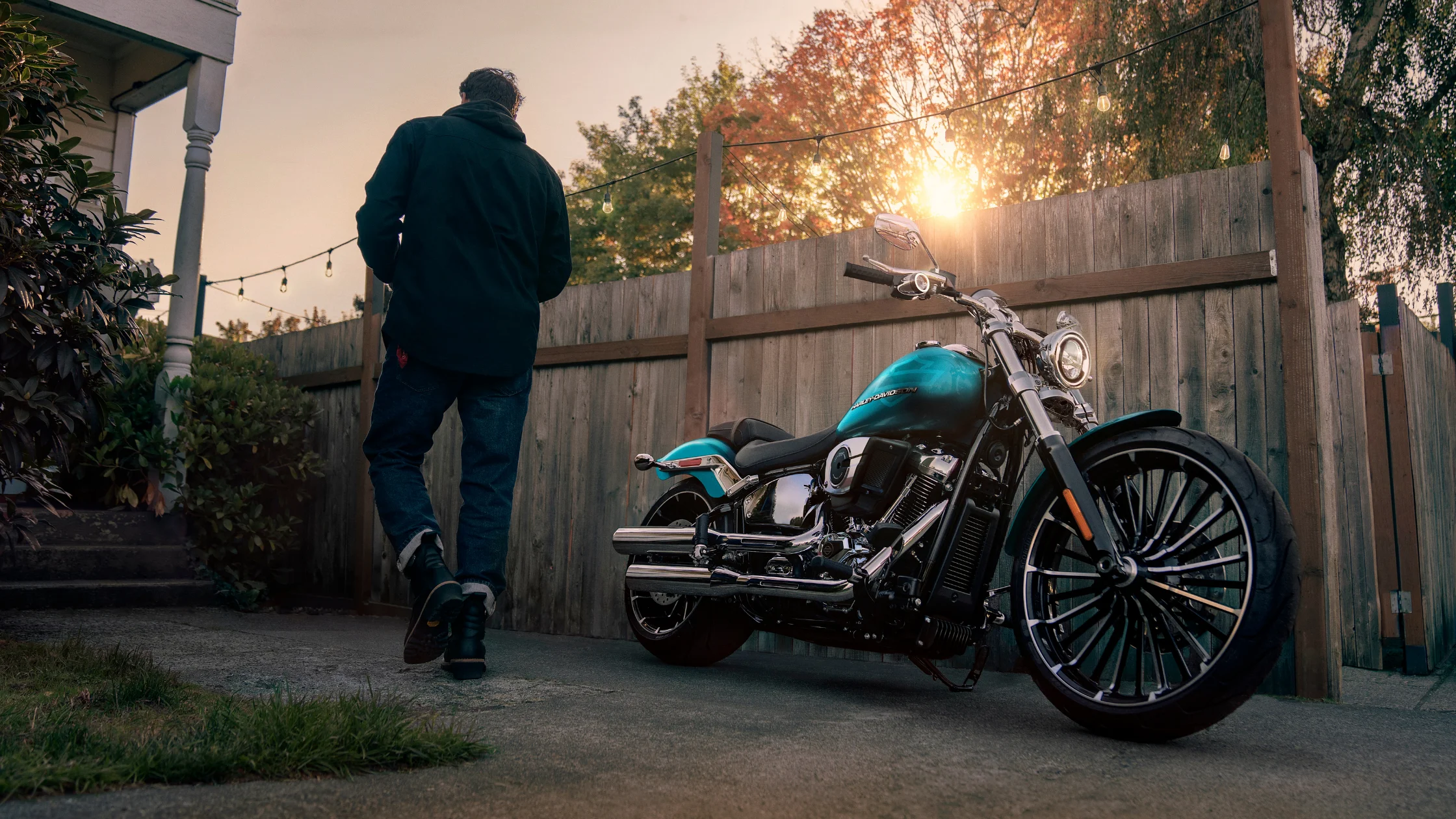

The 2026 Harley-Davidson® Breakout® is a factory-built cruiser that combines a large-displacement Milwaukee-Eight® 117 Custom engine with a long-wheelbase chassis, wide rear tire configuration, and a defined set of rider-assistance systems. The model integrates a 6-speed transmission, electronic fuel injection, LED lighting, and a compact digital information display within an analog gauge. Its specifications emphasize torque output, stable geometry, and essential rider-focused technology rather than infotainment features. The design and engineering choices reflect a focus on mechanical performance, structural integrity, and controlled power delivery.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Breakout® uses the Milwaukee-Eight® 117 Custom engine with a displacement of 117 cubic inches, equivalent to 1,923 cubic centimeters. The engine operates with a bore of 4.075 inches and a stroke of 4.5 inches, paired with a compression ratio of 10.3 to 1. This configuration supports strong torque generation at lower engine speeds while maintaining consistent power output across the rev range. The engine produces 126 foot-pounds of torque at 3,000 rpm and reaches a peak power output of 103 horsepower at 4,800 rpm.
The valve system uses a pushrod-operated overhead valve arrangement with hydraulic, self-adjusting lifters and four valves per cylinder. This design reduces the need for periodic manual adjustment and supports consistent valve operation. Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which provides controlled fuel metering for combustion efficiency and throttle response. The intake system includes a Helix-style air cleaner, which contributes to airflow management and supports the engine’s performance characteristics.
The lubrication system is a pressurized dry-sump design with an integrated oil cooler. This setup ensures consistent oil circulation and temperature management under varying operating conditions. The exhaust system is configured as a 2-into-2 staggered arrangement with the catalyst located in the muffler. This design maintains emissions compliance while preserving the structural layout of the exhaust components.
Transmission and Drivetrain Structure
The drivetrain of the 2026 Harley-Davidson® Breakout® consists of a chain primary drive with a 34 to 46 ratio and a belt final drive with a 32 to 66 ratio. This combination balances durability and efficiency, with the belt final drive requiring minimal maintenance compared to chain-driven alternatives. The clutch is a mechanical 10-plate wet system with assist and conventional functionality, providing consistent engagement and reducing lever effort.
The motorcycle uses a 6-Speed Cruise Drive® transmission. Gear ratios are configured to provide a wide operating range, with an overall first gear ratio of 9.311 and a sixth gear ratio of 2.79. Intermediate gear ratios include 6.454 in second gear, 4.793 in third gear, 3.882 in fourth gear, and 3.307 in fifth gear. This spread supports controlled acceleration and stable cruising at higher speeds, allowing the engine to operate efficiently across different riding conditions.
Frame Geometry and Structural Engineering
The frame of the 2026 Harley-Davidson® Breakout® is constructed from mild steel in a tubular configuration with a rectangular section backbone. The structure incorporates stamped, cast, and forged junctions, all joined using MIG welding. Aluminum forged fender supports are included to reduce weight while maintaining structural integrity. The swingarm is also built from mild steel tubular sections with a stamped cross-member and forged axle junctions, designed to handle the torque output of the engine and the load distribution of the wide rear tire.
The motorcycle has an overall length of 93.5 inches, a width of 37 inches, and a height of 44.3 inches. The wheelbase measures 66.7 inches, contributing to the extended stance and stability. The rake angle is set at 34 degrees, with a fork angle of 36 degrees and a trail measurement of 5.7 inches. These values define the steering geometry and influence handling characteristics.
Seat height is measured at 25.6 inches in a laden condition and 26.2 inches unladen. Static ground clearance is listed at 4.5 inches. These measurements position the rider lower within the chassis, which affects balance and reach to the ground. The structural design and geometry work together to support the motorcycle’s weight distribution and overall riding posture.
Suspension Components and Wheel Configuration
The front suspension uses a 49 mm telescopic fork with dual-bending valve technology and aluminum triple clamps. The fork incorporates a dual-rate spring to manage compression and rebound characteristics. Front suspension travel is 5 inches, providing a defined range of motion for absorbing road irregularities.
The rear suspension consists of a hidden coil-over monoshock with a free-piston design and 43 mm of stroke. It includes hydraulic preload adjustment, allowing for changes in rear suspension settings based on load conditions. Rear suspension travel is measured at 3.4 inches.
The wheel setup includes gloss black 26-spoke cast aluminum wheels. The front wheel measures 21 inches in diameter and 3.5 inches in width, while the rear wheel measures 18 inches in diameter and 8 inches in width. Tire specifications include a 130/60B21 front tire and a 240/40R18 rear tire, both from the Michelin® Scorcher 11 series. The rear tire width contributes to the motorcycle’s contact patch and influences traction characteristics.
Braking System and Control Mechanisms
The braking system uses a 4-piston fixed caliper on the front wheel and a 2-piston floating caliper on the rear wheel. The front brake rotor has a diameter of 11.8 inches, while the rear rotor measures 11.5 inches. Both rotors use a Split 7-spoke floating design with a black finish. The front rotor thickness is 0.2 inches, and the rear rotor thickness is 0.23 inches.
Anti-lock Braking System is included as standard equipment. This system prevents wheel lock during braking by modulating brake pressure. The motorcycle also includes a Traction Control System, which manages rear wheel slip during acceleration. Drag-torque Slip Control System is integrated to reduce rear wheel instability during downshifting.
Tire Pressure Monitoring System is also included, providing continuous monitoring of tire pressure levels. Cornering-enhanced systems are incorporated into the braking and traction control functions. These include Cornering Enhanced ABS, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. These systems adjust intervention based on lean angle and riding conditions, improving stability during cornering.
Electrical System and Lighting Equipment
The electrical system includes a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours, with a cold cranking capacity of 310 amps at 0 degrees Fahrenheit. Charging is managed by a three-phase 48-amp system. The system produces 364 watts at 13 volts and 900 rpm, with a maximum output of 624 watts at 13 volts and 2,000 rpm.
The starting system uses a 1.6 kilowatt electric starter with solenoid shift engagement. Lighting components are fully LED-based. The headlamp includes a low beam, a high beam, and a signature position lamp. Rear lighting consists of bullet-style LED stop, tail, and turn signals. Front and rear turn signals are also LED bullet-style units.
A USB-C power outlet is included, providing an output of 5 volts at 2.4 amps. This allows for charging of compatible devices. The motorcycle does not include auxiliary lamps or a GPS system.
Instrumentation and Rider Interface
The 2026 Harley-Davidson® Breakout® uses a 4-inch analog speedometer with an integrated digital display. The display provides information including gear position, odometer, fuel level, ride modes, heated gear status, traction control, ABS status, tire pressure monitoring system, cruise control, clock, trip data, range, and tachometer readings. This configuration consolidates operational data into a compact interface without the use of a larger infotainment system.
The model does not include an infotainment system, Bluetooth® connectivity, navigation, or audio components. This design choice prioritizes essential vehicle information and reduces complexity within the rider interface. The absence of these features reflects a focus on mechanical operation and system monitoring.
Fuel Capacity and Operational Efficiency
The fuel tank has a capacity of 5 gallons, with a reserve level indicated by a warning light at approximately 1 gallon remaining. Oil capacity with filter is 5 quarts. Transmission capacity is 1 quart, and the primary chain case holds 1.43 quarts. These capacities define the maintenance requirements and operational limits of the motorcycle.
The estimated fuel economy is listed at 49 miles per gallon under combined city and highway conditions. This figure provides an indication of fuel consumption relative to engine size and output. The balance between displacement and efficiency is supported by the fuel injection system and engine configuration.
