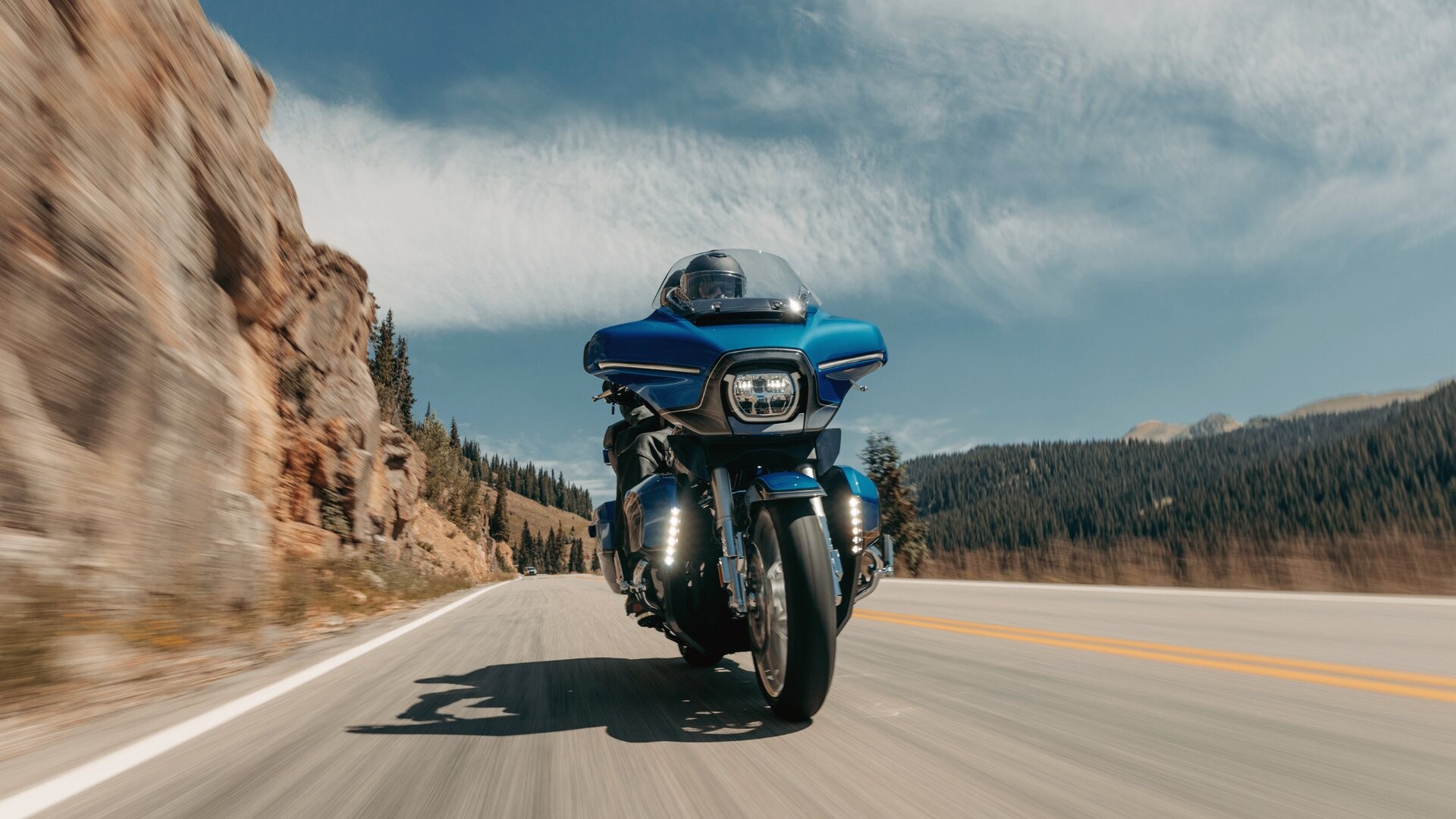

The 2026 Harley-Davidson® CVO™ Street Glide® Limited is engineered as a high-capacity touring motorcycle that combines large-displacement performance, integrated rider technology, and long-distance functionality within a unified platform. This model uses a Milwaukee-Eight® VVT 121 engine, a structurally reinforced touring chassis, and a fully integrated infotainment system designed for sustained highway riding and controlled handling. The motorcycle measures 103.3 inches in length, 40.7 inches in overall width, and 56.7 inches in height, creating a stable profile intended for comfort and road presence during extended travel. A loaded seat height of 26.4 inches and an unloaded seat height of 29.1 inches support accessibility while maintaining appropriate ground clearance and riding posture. The technical structure prioritizes measurable performance, load capacity, and system integration, making the model suitable for riders seeking advanced touring specifications supported by electronic assistance and modern connectivity.
Engine Configuration and Power Delivery
The 2026 Harley-Davidson® CVO™ Street Glide® Limited uses the Milwaukee-Eight® VVT 121 engine with a displacement of 121 cubic inches, equivalent to 1,977 cubic centimeters. The bore measures 4.075 inches and the stroke measures 4.625 inches, creating a configuration designed to produce strong low-rpm torque while maintaining consistent output across the operating range. The engine runs a compression ratio of 11.4:1 and uses pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. This arrangement supports reliable valve operation while reducing routine adjustment requirements.
Fuel delivery relies on Electronic Sequential Port Fuel Injection, which ensures controlled fuel distribution across different throttle positions and load demands. The intake system includes a fiberglass washable air cleaner intended for durability and repeated service use. Exhaust routing uses a 2-1-2 dual exhaust configuration with tapered mufflers that support consistent flow management. Engine lubrication follows a pressurized dry-sump system that assists temperature control and lubrication stability during prolonged operation. Performance figures show approximately 139 foot-pounds of torque at 3,000 rpm and a rated output of 115 horsepower at 4,500 rpm. These specifications indicate a strong mid-range response aligned with touring demands, especially during highway acceleration and loaded operation.
Transmission and Drivetrain Engineering
Power transfer is managed through a 6-Speed Cruise Drive® transmission designed to balance acceleration and sustained highway efficiency. The gear ratio progression moves from a low first gear ratio of 9.593 to a sixth gear ratio of 2.875, allowing the engine to operate at lower rpm during cruising conditions. This setup reduces mechanical strain and contributes to smoother long-distance riding characteristics.
The drivetrain combines a chain primary drive with a belt final drive, selected for durability and reduced maintenance requirements compared to exposed chain systems. The clutch uses a mechanically actuated 10-plate wet design with Assist and Slip functionality. This mechanism reduces lever effort while helping stabilize the rear wheel during aggressive downshifts or rapid deceleration. The drivetrain layout supports predictable power delivery and maintains consistent traction under changing riding conditions.
Chassis Structure and Geometry Design
The chassis uses a mild steel tubular frame constructed with two-piece stamped and welded sections, supported by cast and forged junctions for structural rigidity. Twin down tubes and a bolt-on rear frame contribute to load management and touring stability. The swingarm follows a two-piece drawn and welded construction with forged junctions that enhance structural integrity under high loads.
Steering geometry includes a rake angle of 26 degrees and a trail measurement of 6.7 inches. Combined with a 64-inch wheelbase, these figures contribute to straight-line stability while maintaining controlled steering response through curves. The chassis dimensions are designed to support predictable handling characteristics suited to highway riding and long-distance travel. Static ground clearance measures 5.5 inches, supporting cornering ability and road obstacle clearance without compromising ride stability.
Suspension Systems and Ride Control
Front suspension of the 2026 Harley-Davidson® CVO™ Street Glide® Limited uses a 47 mm inverted fork assembly intended to provide controlled damping and structural stiffness. Rear suspension consists of dual adjustable emulsion shocks. The left shock includes remote preload adjustment, while the right shock uses threaded preload adjustment. This setup allows riders to adapt suspension behavior based on passenger weight, luggage load, and road conditions.
Suspension travel measures 4.6 inches at the front and 3 inches at the rear. These figures support balanced ride control by absorbing uneven road surfaces while maintaining chassis stability during acceleration and braking. The suspension configuration aims to deliver predictable response rather than aggressive sport tuning, aligning with the touring purpose of the motorcycle.
Dimensions, Capacity, and Touring Functionality
The overall weight of the 2026 Harley-Davidson® CVO™ Street Glide® Limited includes an as-shipped figure of 882 pounds and a running order weight of 919 pounds. The gross vehicle weight rating reaches 1,360 pounds, allowing for additional passenger and luggage capacity within engineered safety limits. Fuel capacity measures 6 gallons, supported by a reserve warning system that activates when approximately 1 gallon remains.
Luggage capacity reaches 4.8 cubic feet, providing practical storage volume suitable for extended trips. Oil capacity measures 5 quarts, including filter volume, while transmission capacity is listed at 1 quart, and the primary chain case holds approximately 1.1 quarts. These specifications highlight system volumes designed for sustained operation and maintenance intervals consistent with touring usage. The dimensional balance of seat height, wheelbase, and storage capacity reflects a design approach focused on comfort and functional transportation capability.
Wheels, Tires, and Braking Specifications
The wheel setup includes dual-grain chrome 14-spoke wheels with a 19-inch front diameter and an 18-inch rear diameter. Front wheel width measures 3.5 inches, while the rear measures 5 inches. Tire specifications consist of a 130/60B19 front tire and a 180/55B18 rear tire from the Dunlop® Harley-Davidson® Series, both using bias blackwall construction.
Braking hardware includes dual front floating rotors paired with four-piston fixed radial-mounted calipers. The rear brake uses a single fixed rotor with an axial-mounted caliper. Front rotors measure 12.6 inches in diameter with a thickness of 0.18 inches, while the rear rotor measures 11.8 inches in diameter and 0.28 inches in thickness. Anti-lock Braking System functionality is standard and integrates with other electronic systems designed to improve rider control during braking events.
Electrical Systems and Integrated Technology
Electrical performance relies on a sealed maintenance-free 12-volt battery rated at 28 amp-hours with 405 cold cranking amps. Charging is managed by a three-phase 58-amp system delivering a maximum output of approximately 754 watts at 13 volts. Starting functionality uses a 1.6 kW electric starter with solenoid shift engagement.
Lighting components consist entirely of LED units, including headlamps, tail lamps, and turn signals. Digital gauges are integrated within the display interface to consolidate rider information into a single viewing area. A USB-C electric power accessory port rated at 15 watts is positioned within the media storage compartment, allowing device charging during operation. The electrical layout supports multiple integrated systems without overloading capacity.
Infotainment Platform and Connectivity Functions
The infotainment system operates through Skyline™ OS and uses a 12.3-inch full-color TFT display. This interface combines navigation, audio control, and vehicle information within a centralized digital environment. The audio system includes six speakers distributed through the fairing, Tour-Pak®, and lower fairing areas. Amplification supports multiple channels rated at 125 watts and 150 watts, depending on configuration.
Connectivity features include Bluetooth® phone and media support, hands-free mobile interaction, and rider or passenger intercom capability when compatible headsets are equipped. USB-C and smartphone integration allow supported device connections through appropriate adapters. Apple CarPlay® functionality is available using either wired or wireless connections. The navigation system includes an embedded GPS platform with traffic and weather support through Wi-Fi hotspot access when subscription requirements are met. Vehicle information displays include readings such as air temperature, oil pressure, and engine idle temperature management data.
Rider Assistance and Cornering Safety Systems
Rider safety technology includes Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, and Tire Pressure Monitoring System. These systems monitor traction and braking conditions to help maintain stability during acceleration and deceleration events.
Cornering-enhanced systems add lean-sensitive functionality. Included systems consist of Cornering Enhanced Anti-lock Braking, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control, and Cornering Drag-Torque Slip Control. These electronic systems adjust braking and traction responses while the motorcycle is leaned into a turn, improving control through dynamic riding conditions. The combination of braking hardware and electronic supervision creates a structured safety framework intended to support rider input without unnecessary intervention.
