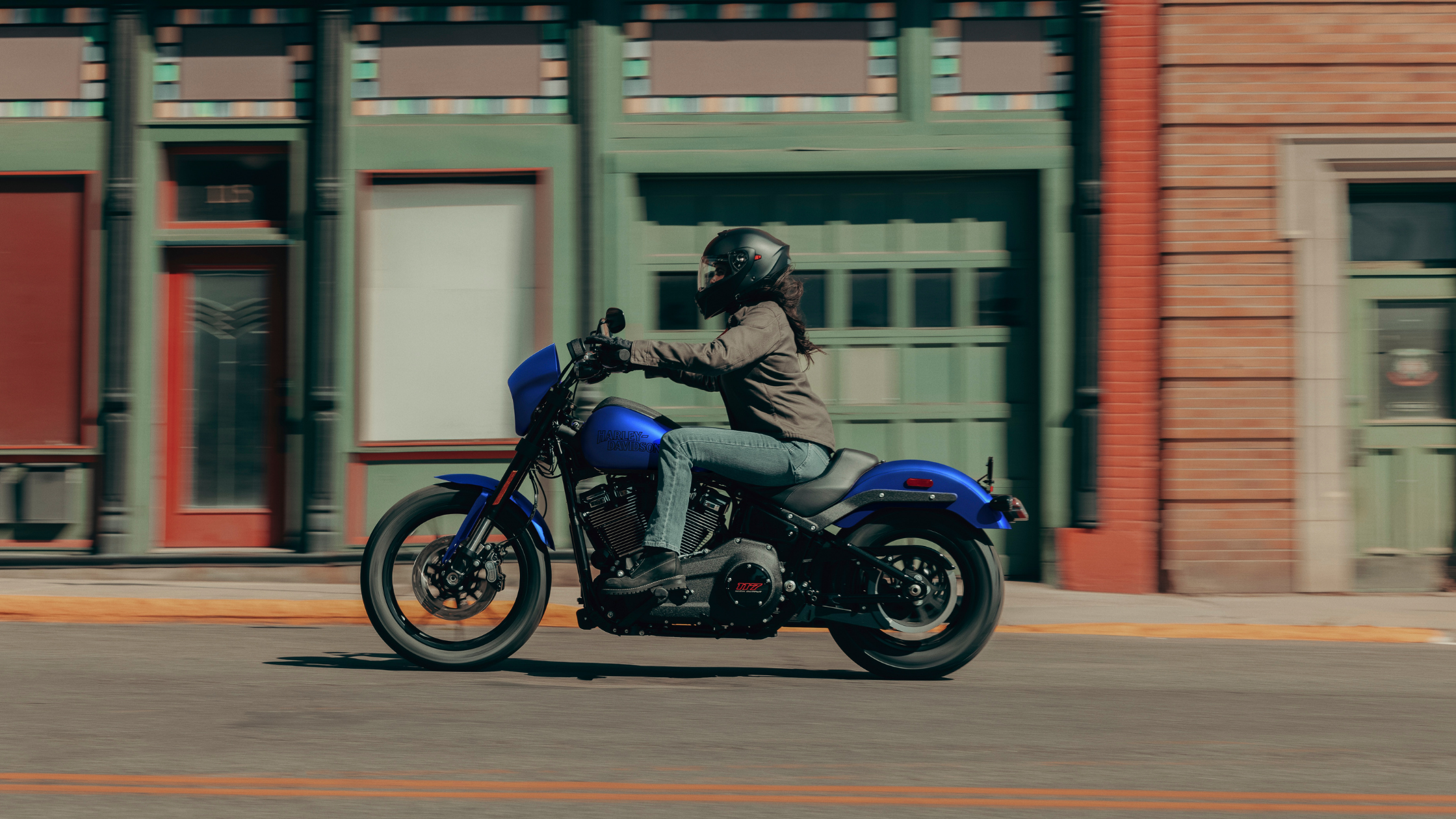

The 2026 Harley-Davidson® Low Rider® S is a performance-focused cruiser that combines a high-output V-twin engine, rider-focused technology, advanced safety systems, and a purpose-built chassis package. Designed around the Milwaukee-Eight® 117 High Output powertrain, this motorcycle integrates substantial torque, a six-speed transmission, modern electronic rider aids, and a suspension system engineered to support confident handling. The model also incorporates LED lighting, a comprehensive rider information display, and a range of standard safety technologies that contribute to overall control and rider awareness. From its engine and drivetrain to its braking systems and electrical components, every major system serves a clearly defined functional purpose.
Engine and Powertrain
The 2026 Harley-Davidson® Low Rider® S is powered by the Milwaukee-Eight® 117 High Output engine. This V-twin powerplant features a displacement of 117 cubic inches, or 1,923 cc, achieved through a bore of 4.075 inches and a stroke of 4.5 inches. The engine operates with a 10.3:1 compression ratio and utilizes a pushrod-operated overhead valve design with hydraulic self-adjusting lifters. Each cylinder incorporates four valves, contributing to the engine's overall breathing characteristics and combustion efficiency. The result is a powertrain configuration designed to deliver strong output throughout the operating range while maintaining the mechanical simplicity associated with this valve train design.
Induction, Fuel Delivery, and Exhaust System
Fuel delivery is managed through Electronic Sequential Port Fuel Injection (ESPFI), providing precise fuel metering for the Milwaukee-Eight® 117 High Output engine. Air enters through a Heavy Breather intake equipped with a synthetic media washable exposed element, allowing for serviceability while supporting the engine's airflow requirements. Exhaust gases exit through a 2-into-1 exhaust system that incorporates a catalyst within the header assembly. This combination of intake, fuel, and exhaust components creates an integrated system designed to support the engine's performance characteristics. The overall configuration reflects a focus on efficient airflow management and consistent engine operation.
Lubrication and Performance Output
The engine utilizes a pressurized dry-sump lubrication system equipped with an oil cooler. This arrangement separates oil storage from the crankcase and supports stable lubrication across a variety of operating conditions. Performance figures are rated at 114 horsepower, or 85 kW, at 5,000 rpm, while peak torque is listed at 128 ft-lb, or 174 Nm, at 4,000 rpm. These values are measured using established certification standards and demonstrate the engine's substantial output characteristics. The combination of displacement, compression ratio, fuel injection, and lubrication design creates a powertrain package that serves as a defining feature of the 2026 Harley-Davidson® Low Rider® S.
Drivetrain and Transmission
The drivetrain of the 2026 Harley-Davidson® Low Rider® S transfers engine output through a combination of chain and belt drive systems. The primary drive utilizes a chain arrangement with a 34/46 ratio, while final drive duties are handled through a belt system with a 32/66 ratio. This configuration supports efficient power delivery from the engine to the rear wheel while maintaining the drivetrain layout specified for the model. Each component works together to create a cohesive system that balances durability, mechanical function, and rider control.
Clutch and Gear Ratios
A mechanical 10-plate wet clutch with assist and conventional operation manages engagement between the engine and transmission. The transmission itself is a 6-Speed Cruise Drive® unit that provides six forward gear ratios for a broad operating range. Overall ratios are listed as 9.311 in first gear, 6.454 in second gear, 4.793 in third gear, 3.882 in fourth gear, 3.307 in fifth gear, and 2.79 in sixth gear. This progression allows the engine to operate effectively across a variety of riding conditions while maintaining a structured ratio spread. The transmission and clutch system form an important part of the motorcycle's performance-oriented character.
Chassis and Structural Design
The 2026 Harley-Davidson® Low Rider® S is built around a mild steel tubular frame engineered with a rectangular-section backbone. The frame incorporates stamped, cast, and forged junctions connected through MIG-welded construction techniques. Aluminum-forged fender supports contribute to the overall chassis structure while supporting bodywork components. This combination of materials and manufacturing methods creates a rigid foundation for the motorcycle's suspension, steering, and drivetrain systems. The frame serves as the central structural element that ties together the motorcycle's major mechanical components.
Swingarm Construction
The swingarm utilizes mild steel tubular sections and incorporates a stamped cross-member design. Forged axle junctions contribute to structural integrity, while MIG-welded construction supports overall durability. A removable belt spacer is also included as part of the swingarm assembly. These engineering details demonstrate a clear emphasis on robust construction and serviceability. Together with the frame, the swingarm forms the primary structural platform that supports the motorcycle's rear suspension and final drive components.
Steering Geometry
The steering geometry of the 2026 Harley-Davidson® Low Rider® S includes a 28-degree rake and a matching 28-degree fork angle. Trail measures 5.7 inches, while wheelbase extends to 63.6 inches. These dimensions define the motorcycle's overall chassis layout and influence its handling characteristics. The geometry specification works in conjunction with the suspension system, wheel sizes, and tire selection to establish the motorcycle's riding dynamics. The resulting platform reflects a carefully defined balance of stability and responsiveness.
Suspension System
Suspension components on the 2026 Harley-Davidson® Low Rider® S are designed to support both rider comfort and chassis control. The front suspension consists of a single-cartridge 43 mm inverted fork equipped with aluminum fork triple clamps and a single-rate spring. This inverted fork arrangement contributes to front-end rigidity while providing controlled suspension movement. Front suspension travel measures 5 inches, or 130 mm, allowing the fork assembly to absorb surface irregularities while maintaining steering precision.
Rear Suspension Design
At the rear, the motorcycle uses a hidden free-piston coil-over monoshock. The shock features a 56 mm stroke and incorporates hydraulic preload adjustment, enabling preload changes through an integrated adjustment mechanism. Rear suspension travel measures 4.4 inches, or 112 mm. This rear suspension configuration supports rider comfort while contributing to overall chassis composure. The combination of front and rear suspension components creates a coordinated system intended to manage weight transfer, road inputs, and rider control.
Wheels, Tires, and Braking Systems
The 2026 Harley-Davidson® Low Rider® S rides on black Radiate Cast Aluminum wheels designed specifically for this model configuration. The front wheel measures 19 inches in diameter and 2.5 inches in width, while the rear wheel measures 16 inches in diameter and 5 inches in width. Tire duties are handled by Michelin® Scorcher 31 tires at both ends. The front tire specification is 110/90B19 62H BW, while the rear tire specification is 180/70B16 77H BW. Together, the wheel and tire package supports the motorcycle's chassis geometry, braking system, and overall handling characteristics.
Brake Hardware
Braking performance is managed through dual front brakes and a single rear brake assembly. The front system uses 4-piston fixed calipers paired with 11.8-inch floating rotors that measure 5 mm in thickness. At the rear, a 2-piston floating caliper works with an 11.5-inch rotor measuring 5.8 mm in thickness. Both front and rear rotors feature a black Split 7-spoke floating design. This braking package provides the mechanical foundation for the motorcycle's integrated rider safety technologies.
Lean Angle Capability
The 2026 Harley-Davidson® Low Rider® S features a measured lean angle of 31.3 degrees on both the left and right sides. Equal lean-angle values indicate a balanced chassis configuration from side to side. These figures are determined using an established testing methodology and provide insight into the motorcycle's available cornering clearance. Lean-angle capability works alongside suspension travel, tire specifications, and chassis geometry to define the motorcycle's handling envelope.
Electrical Equipment and Rider Information
The electrical system of the 2026 Harley-Davidson® Low Rider® S begins with a sealed maintenance-free absorbed glass mat battery. The battery is rated at 12 volts, 17.5 Ah, and 310 cold cranking amps at 0°F. Charging is handled by a three-phase 48-amp system capable of producing 364 watts at 13 volts and 900 rpm, with maximum output reaching 624 watts at 13 volts and 2,000 rpm. Engine starting is performed by a 1.6 kW electric starter with solenoid shift starter motor engagement. Together, these components provide the electrical foundation for the motorcycle's operating systems and rider-facing technologies.
Lighting and Visibility
Lighting equipment consists entirely of LED technology. The headlamp assembly incorporates low-beam, high-beam, and signature position lamp functions. Tail and stop lighting are provided through an LED Buffett tail lamp, while front and rear turn indicators utilize LED Bullet Turn Signals. The consistent use of LED lighting across major systems supports visibility and electrical efficiency. This integrated lighting package forms an important part of the motorcycle's overall equipment specification.
Instrumentation and Connectivity
Rider information is displayed through a 4-inch analog speedometer paired with a digital information display. The system provides gear position, odometer, fuel level, ride mode, heated gear, traction control, ABS, tire pressure monitoring, cruise control, clock, trip, range, and tachometer information. This arrangement allows multiple vehicle functions and status indicators to be viewed from a central location. A USB C-Type power outlet supplies 5 volts at 2.4 amps for compatible devices. The motorcycle focuses on rider information and functional instrumentation rather than a dedicated infotainment system.
Rider Safety Technologies
The 2026 Harley-Davidson® Low Rider® S includes a collection of standard rider safety enhancements designed to support control and awareness. Anti-lock Brake System functionality is included as standard equipment and works alongside the motorcycle's braking hardware. The model also incorporates a Traction Control System and a Drag-Torque Slip Control System. These technologies contribute to the motorcycle's electronic rider assistance package while operating through integrated vehicle systems. Tire Pressure Monitoring System functionality is also included, providing tire-pressure status information through the rider display.
Cornering Rider Safety Enhancements
The 2026 Harley-Davidson® Low Rider® S further expands its safety technology package with cornering-enhanced rider aids. Cornering Enhanced Anti-lock Brake System functionality is included, providing cornering-aware braking support. Cornering Enhanced Traction Control System technology is also standard equipment, along with Cornering Drag-Torque Slip Control System functionality. These systems complement the motorcycle's standard rider aids and contribute to a more comprehensive electronic safety package. Together, they represent a significant portion of the model's rider-assistance equipment.
Dimensions, Capacity, and Functional Comfort
The 2026 Harley-Davidson® Low Rider® S measures 92.9 inches in overall length, 35 inches in overall width, and 47.4 inches in overall height. Laden seat height is listed at 27 inches, while unladen seat height measures 28.1 inches. Static ground clearance measures 5.7 inches, and the wheelbase extends to 63.6 inches. These dimensions define the motorcycle's physical footprint and rider positioning characteristics. They also establish the relationship between seating position, chassis geometry, and suspension layout.
Capacity and Operating Specifications
Fuel capacity measures 5 gallons, with a reserve fuel warning level corresponding to approximately 1 gallon. Oil capacity with filter is 5 quarts, transmission capacity is 1 quart, and primary chain case capacity is 1.25 quarts. The motorcycle has a shipping weight of 644 pounds and a running-order weight of 670 pounds. Gross vehicle weight rating is 1,160 pounds, while the front and rear axle ratings are listed at 450 pounds and 730 pounds, respectively. Estimated fuel economy is rated at 47 mpg, providing an additional operational specification for the model.
