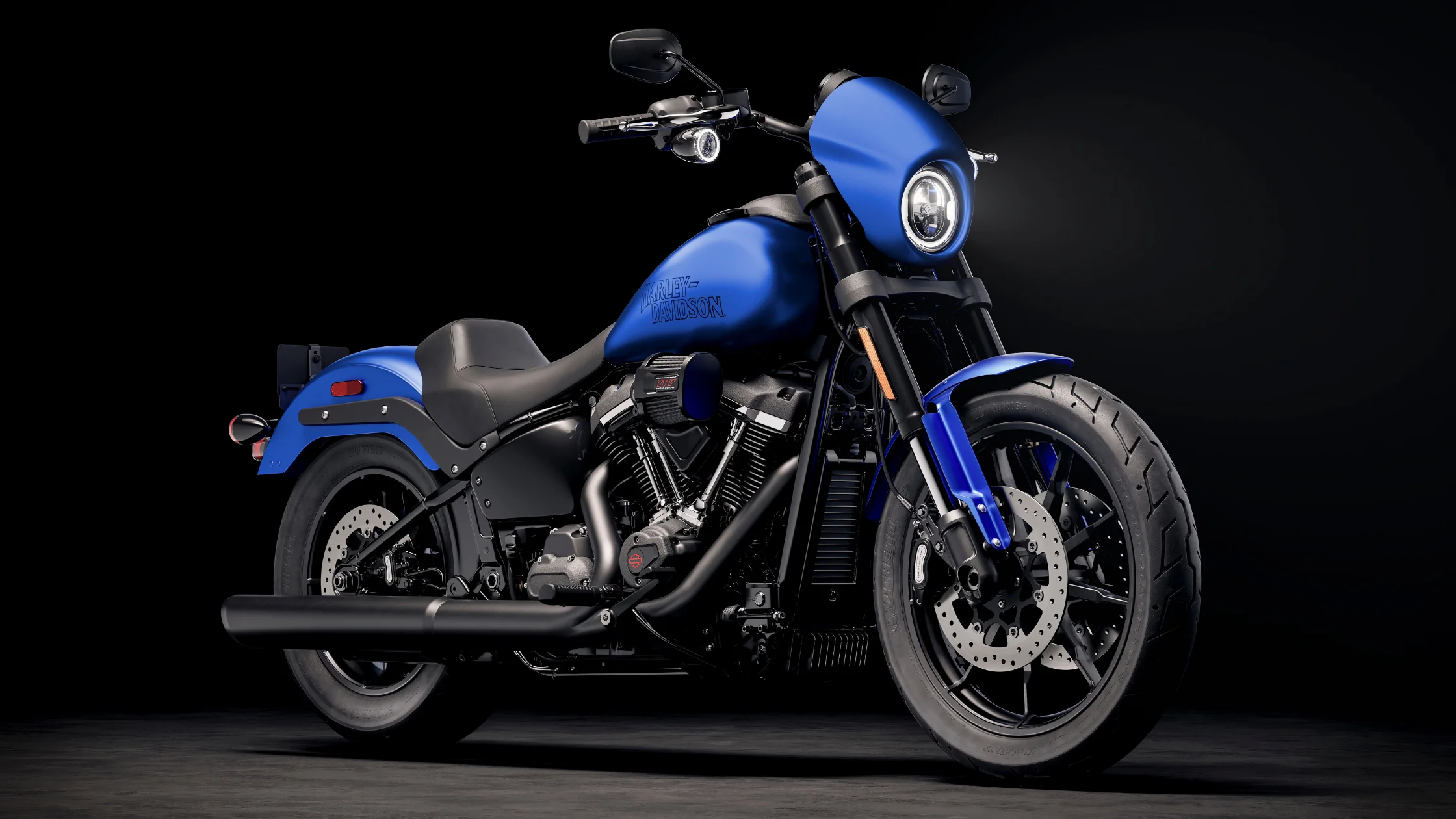

The 2026 Harley-Davidson® Low Rider® S is engineered as a performance-oriented cruiser that prioritizes mechanical efficiency, structural stability, and consistent power delivery. Its configuration integrates a high-displacement V-twin engine, a rigid tubular frame, and a fully supported electronic rider safety system. The motorcycle maintains a balance between acceleration capability and handling precision through its drivetrain calibration, suspension layout, and braking components.
High-Output Engine Architecture and Measured Performance
The 2026 Harley-Davidson® Low Rider® S is powered by the Milwaukee-Eight® 117 High Output engine, which delivers a displacement of 117 cubic inches or 1,923 cubic centimeters. The engine uses a pushrod-operated overhead valve configuration with hydraulic, self-adjusting lifters and four valves per cylinder. This design supports consistent valve timing and reduces the need for manual adjustments over time.
The bore measures 4.075 inches, and the stroke measures 4.5 inches, resulting in a compression ratio of 10.3 to 1. This ratio contributes to efficient combustion and supports the engine’s performance output. The engine produces 114 horsepower at 5,000 revolutions per minute and generates 128 foot-pounds of torque at 4,000 revolutions per minute. These values indicate strong mid-range performance and sustained acceleration capability.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which meters fuel precisely for improved combustion efficiency. The intake system uses a Heavy Breather configuration with a washable synthetic media filter, which increases airflow while allowing for reuse after maintenance. The exhaust system follows a 2-into-1 layout with a catalyst integrated into the header, which supports emissions compliance and optimized exhaust flow.
The lubrication system is pressurized and uses a dry-sump configuration with an oil cooler. This system maintains stable oil circulation and temperature control during extended operation. The absence of liquid cooling simplifies the system while maintaining effective thermal management.
Transmission System and Gear Ratio Distribution
The drivetrain configuration is designed to transfer engine output efficiently to the rear wheel. The primary drive uses a chain with a 34 to 46 ratio, while the final drive uses a belt with a 32 to 66 ratio. This combination balances durability with reduced maintenance requirements.
The motorcycle is equipped with a 6-speed Cruise Drive® transmission. The gear ratios are structured to support both acceleration and steady cruising. The first gear ratio is 9.311, followed by 6.454 in second gear and 4.793 in third gear. Fourth gear is set at 3.882, fifth gear at 3.307, and sixth gear at 2.79. This progression allows for controlled power delivery across varying speeds.
The clutch system is a mechanical, 10-plate wet clutch with assist and conventional operation. This configuration reduces lever effort while maintaining consistent engagement under load. The transmission system supports predictable shifting behavior and stable power transfer across all gears.
Frame Construction and Chassis Geometry
The frame is constructed from mild steel with a tubular design and a rectangular section backbone. It incorporates stamped, cast, and forged junctions that are joined using MIG welding. This construction method increases rigidity while maintaining structural integrity under load conditions.
The swingarm uses tubular steel sections with a stamped cross-member and forged axle junctions. It also includes a removable belt spacer, which supports maintenance and alignment adjustments. The frame and swingarm combination contributes to overall stability and handling consistency.
The motorcycle has a rake angle of 28 degrees and a trail measurement of 5.7 inches. These values influence steering response and directional stability. The wheelbase measures 63.6 inches, which supports balanced weight distribution and predictable handling characteristics.
The overall length of the motorcycle is 92.9 inches, with a width of 35 inches and a height of 47.4 inches. The seat height is 27 inches when laden and 28.1 inches when unladen. Ground clearance is measured at 5.7 inches. These dimensions provide a stable riding position while maintaining accessibility.
Suspension Configuration and Ride Control
The front suspension consists of a 43 millimeter inverted fork with a single cartridge design and aluminum triple clamps. The fork uses a single-rate spring, which contributes to consistent damping characteristics. This setup improves front-end rigidity and enhances feedback during braking and cornering.
The rear suspension uses a hidden coil-over monoshock with a free piston design. It has a stroke of 56 millimeters and includes hydraulic preload adjustment. This allows for load-specific tuning and consistent ride height under varying conditions.
Suspension travel is measured at 5 inches in the front and 4.4 inches in the rear. These values provide a balance between ride comfort and handling precision. The suspension system is configured to maintain stability during acceleration, braking, and cornering transitions.
Brake System Design and Safety Integration
The braking system includes dual front discs with a diameter of 11.8 inches and a rear disc measuring 11.5 inches. The front uses 4-piston fixed calipers, while the rear uses a 2-piston floating caliper. This configuration provides consistent braking force and controlled deceleration.
The system includes an anti-lock Braking System as a standard feature. This system prevents wheel lock during braking and maintains traction on varying surfaces. Additional rider safety systems include a Traction Control System and a Drag-torque Slip Control System, which manage wheel slip during acceleration and deceleration.
The Tire Pressure Monitoring System provides continuous feedback on tire pressure levels, supporting optimal tire performance. Cornering-enhanced systems are also included. These systems adjust braking and traction based on lean angle, improving control during turns. Cornering ABS, Cornering Traction Control, and Cornering Drag-torque Slip Control System contribute to stability during dynamic riding conditions.
Wheel Design, Tire Specifications, and Contact Stability
The 2026 Harley-Davidson® Low Rider® S uses black Radiate cast aluminum wheels. The front wheel has a diameter of 19 inches and a width of 2.5 inches, while the rear wheel measures 16 inches in diameter and 5 inches in width. This configuration supports directional control and rear traction.
The motorcycle is equipped with Michelin® Scorcher 31 tires for both front and rear. The front tire specification is 110 over 90B19, and the rear tire is 180 over 70B16. These tire dimensions provide a stable contact patch and support traction during acceleration and braking.
The lean angle is measured at 31.3 degrees on both the left and right sides. This allows for controlled cornering without compromising ground clearance. The combination of wheel size, tire specification, and geometry contributes to predictable handling performance.
Electrical System and Functional Instrumentation
The electrical system uses a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours, with a cold cranking capacity of 310 CCA at zero degrees Fahrenheit. The charging system is a three-phase, 48-amp system, capable of producing 364 watts at 13 volts and 900 rpm, with a maximum output of 624 watts at 2,000 rpm.
The starting system uses a 1.6-kilowatt electric starter with a solenoid shift mechanism. Lighting components are fully LED-based, including the headlamp, taillamp, and turn signals. This improves visibility and reduces energy consumption.
Instrumentation is provided through a 4-inch analog speedometer with a digital display. The display includes information such as gear position, odometer, fuel level, ride modes, traction control status, ABS status, tire pressure monitoring, cruise control, clock, trip data, range, and tachometer indication. A USB-C power outlet provides 5 volts at 2.4 amps for device charging.
Fuel Capacity and Efficiency Metrics
The fuel system includes a tank capacity of 5 gallons, with a reserve capacity of 1 gallon indicated by a warning light. This supports extended riding intervals without frequent refueling. The estimated fuel economy is 47 miles per gallon, based on combined city and highway testing conditions.
Oil capacity with filter is 5 quarts, while the transmission capacity is 1 quart and the primary chain case capacity is 1.25 quarts. These values support consistent lubrication and system performance.
The motorcycle has a running weight of 670 pounds and a gross vehicle weight rating of 1,160 pounds. The front axle rating is 450 pounds, and the rear axle rating is 730 pounds. These figures define load distribution and operational limits.
Technology Configuration and System Simplicity
The 2026 Harley-Davidson® Low Rider® S does not include an integrated infotainment system, navigation, or Bluetooth® connectivity. This configuration reduces system complexity and focuses on essential riding functions. The available instrumentation and electronic systems are centered on performance data and rider assistance.
Ride modes are integrated into the system and can be monitored through the digital display. These modes adjust system behavior such as traction control and throttle response. The absence of additional multimedia features maintains a simplified interface.
