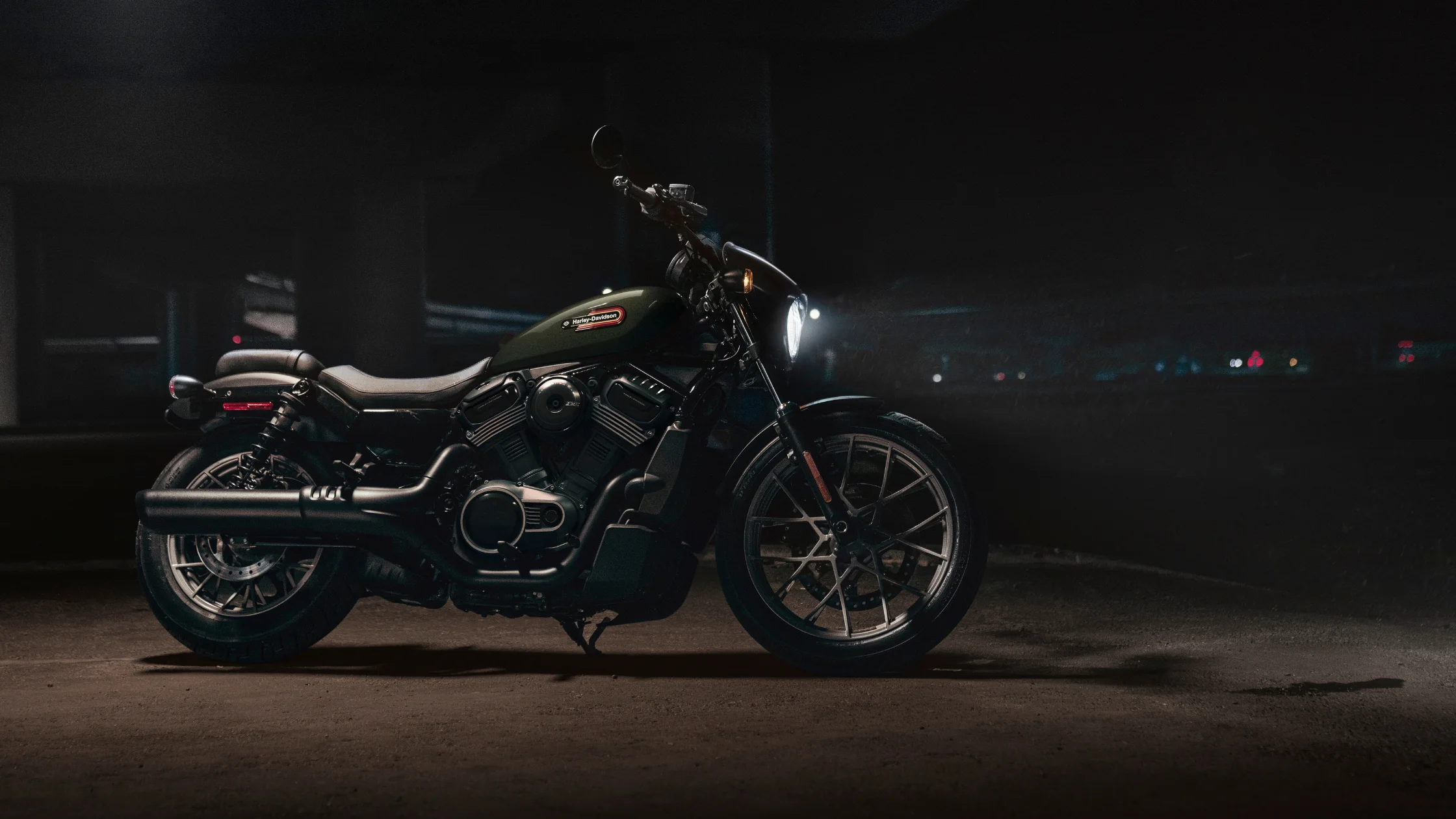

The 2026 Harley-Davidson® Nightster® Special is engineered as a middleweight motorcycle that combines a compact platform with a modern V-twin engine and integrated rider technologies. The model uses the Revolution® Max 975T engine paired with a six-speed transmission and a belt final drive. Its structure incorporates a stressed-member trellis frame, SHOWA® suspension components, and a set of electronic rider aids designed to support control and stability. The motorcycle measures 89.2 inches in length, 33.9 inches in width, and 46.7 inches in height, with a wheelbase of 60.8 inches. A laden seat height of 27.1 inches supports accessibility, while a static ground clearance of 4.7 inches maintains functional riding geometry. These specifications position the 2026 Harley-Davidson® Nightster® Special as a technically focused motorcycle with balanced proportions and measurable performance capability.
Revolution® Max 975T Engine Configuration and Output
The 2026 Harley-Davidson® Nightster® Special uses a 975 cc Revolution® Max 975T engine that features a liquid-cooled architecture and a compact internal layout. The engine employs chain-driven dual overhead camshafts with hydraulic self-adjusting lifters and intake variable valve timing. Each cylinder uses four valves, supporting efficient intake and exhaust flow. The bore measures 3.82 inches, and the stroke measures 2.6 inches, resulting in a displacement of 59.5 cubic inches. The compression ratio is set at 12.0 to 1, indicating a design optimized for controlled combustion and consistent power delivery.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which regulates fuel flow based on engine demand. The intake system uses a downdraft configuration with tuned velocity stacks and a washable air filter element. The exhaust system is a 2-into-1 design with a catalyst integrated into the header assembly. The lubrication system follows a semi-dry sump layout, allowing efficient oil distribution and contributing to compact engine packaging.
The engine produces 91 horsepower at 7,500 rpm and 72 ft-lb of torque at 5,750 rpm. These values reflect a performance profile that supports acceleration across a wide operating range. The torque curve is positioned in the midrange, supporting steady power delivery during typical street operation. This configuration aligns with a design approach that prioritizes consistent output and predictable throttle response.
Transmission System and Drivetrain Mechanics
The drivetrain of the 2026 Harley-Davidson® Nightster® Special includes a six-speed transmission designed to manage engine output across varied speed ranges. The primary drive uses a gear system with a 49 to 89 ratio, while the final drive uses a belt system with a 34 to 80 ratio. This combination supports efficient power transfer with reduced maintenance requirements compared to chain-driven alternatives.
The clutch is an eight-plate wet design with assist and slip functionality. The assist mechanism reduces lever effort during operation, while the slip feature helps regulate rear wheel speed during aggressive downshifting. This system contributes to smoother gear transitions and controlled deceleration. The overall gear ratios range from 12.21 in first gear to 4.131 in sixth gear. This spread allows for initial acceleration in lower gears and reduced engine speed during sustained cruising in higher gears.
Frame Construction and Structural Design
The 2026 Harley-Davidson® Nightster® Special uses a stressed-member frame constructed from high-strength low-alloy steel. The frame integrates stamped, cast, and forged components, joined through MIG welding processes. An aluminum-forged mid-structure is incorporated to reduce weight and support structural rigidity. The engine functions as part of the load-bearing system, contributing to overall chassis stability.
The swingarm is constructed from mild steel with a rectangular tube section and a stamped cross-member. This design provides structural support for the rear suspension while maintaining durability under load. The combination of frame and swingarm construction supports a balance between strength and weight distribution.
Suspension Components and Travel Specifications
The front suspension uses 41 mm SHOWA® Dual Bending Valve conventional forks. These forks are designed to manage compression and rebound damping with consistent response characteristics. Aluminum triple clamps secure the fork assembly and contribute to front-end rigidity. The front suspension provides 4.5 inches of travel, allowing the system to absorb road irregularities while maintaining control.
The rear suspension consists of dual outboard shock absorbers with emulsion technology. These shocks are direct-acting and do not use linkage systems. Each shock includes coil springs and a threaded collar for preload adjustment. Rear suspension travel measures 3.0 inches. This configuration allows riders to adjust preload settings based on weight or load conditions, supporting consistent ride height and handling characteristics.
Wheel Dimensions and Tire Specifications
The 2026 Harley-Davidson® Nightster® Special uses cast aluminum wheels finished in silver. The front wheel measures 19 inches in diameter and 2.5 inches in width. The rear wheel measures 16 inches in diameter and 4.25 inches in width. This sizing combination supports directional stability at the front and traction at the rear.
The motorcycle is equipped with Dunlop® Harley-Davidson® Series bias blackwall tires. The front tire specification is 100/90-19 57H, and the rear tire specification is 150/80B16 77H. These tires are selected to match the wheel dimensions and provide consistent grip across standard riding conditions.
Brake System Design and Performance Metrics
The braking system on the 2026 Harley-Davidson® Nightster® Special includes a front axially mounted four-piston caliper and a rear floating single-piston caliper. The front brake uses a single floating rotor with a diameter of 12.6 inches and a thickness of 0.23 inches. The rear brake uses a solid rotor with a diameter of 10.2 inches and a thickness of 0.2 inches.
Anti-lock Braking System is included as standard equipment. This system monitors wheel speed and adjusts brake pressure to reduce the likelihood of wheel lock during braking. The brake configuration is designed to provide controlled stopping performance with consistent feedback at the lever and pedal.
Rider Safety Enhancements and Electronic Control Systems
The 2026 Harley-Davidson® Nightster® Special includes a set of electronic rider safety features that operate independently of advanced cornering systems. The Traction Control System regulates rear wheel spin during acceleration. The Drag-torque Slip Control System manages engine braking effects to support rear-wheel stability during deceleration. The Tire Pressure Monitoring System provides continuous feedback on tire pressure levels.
Electronic Linked Braking, Vehicle Hold Control, and wheel lift mitigation are not included on this model. Cornering-enhanced systems such as cornering ABS and cornering traction control are also not present. The included safety systems focus on direct rider input management and baseline stability support.
Electrical System and Lighting Components
The electrical system uses a sealed absorbed glass mat battery rated at 12 volts and 12 amp-hours, with a cold cranking capacity of 225 CCA. Charging is managed by a three-phase 45-amp system, capable of producing 300 watts at 1,200 rpm and up to 585 watts at higher engine speeds. Starting is handled by a 0.9 kW electric starter motor with direct drive engagement.
Lighting components include an all-LED headlamp with low and high beam functionality and integrated signature lighting. Rear lighting is also fully LED, including tail and stop lamps. Front and rear turn signals use LED bullet-style units. These lighting systems are designed to provide consistent illumination and visibility.
Instrumentation and Display Interface
The 2026 Harley-Davidson® Nightster® Special uses a 4-inch color TFT display as the primary instrument cluster. The display presents speed, gear position, odometer readings, fuel level, clock, trip data, and ambient temperature. Additional indicators include low temperature alerts, side stand status, tip-over alerts, cruise indicators, range estimates, and tachometer readings.
The display supports Bluetooth® connectivity, allowing pairing with a mobile device for phone calls, music playback, and navigation through the Harley-Davidson® application. Hands-free mobile phone functionality is included, along with headset-based intercom capability. Vehicle information such as tire pressure, engine temperature, battery voltage, and ambient air temperature is also accessible through the display interface.
Fuel Capacity and Efficiency Metrics
The 2026 Harley-Davidson® Nightster® Special uses a fuel tank with a capacity of 3.1 gallons. A reserve fuel capacity of 0.8 gallons is indicated through a warning system. The motorcycle delivers an estimated fuel economy of 52 miles per gallon based on combined city and highway testing conditions. Oil capacity with filter is 4.75 quarts, and coolant capacity is 2.22 quarts. These values support the operational requirements of the liquid-cooled engine and provide a reference for maintenance intervals.
