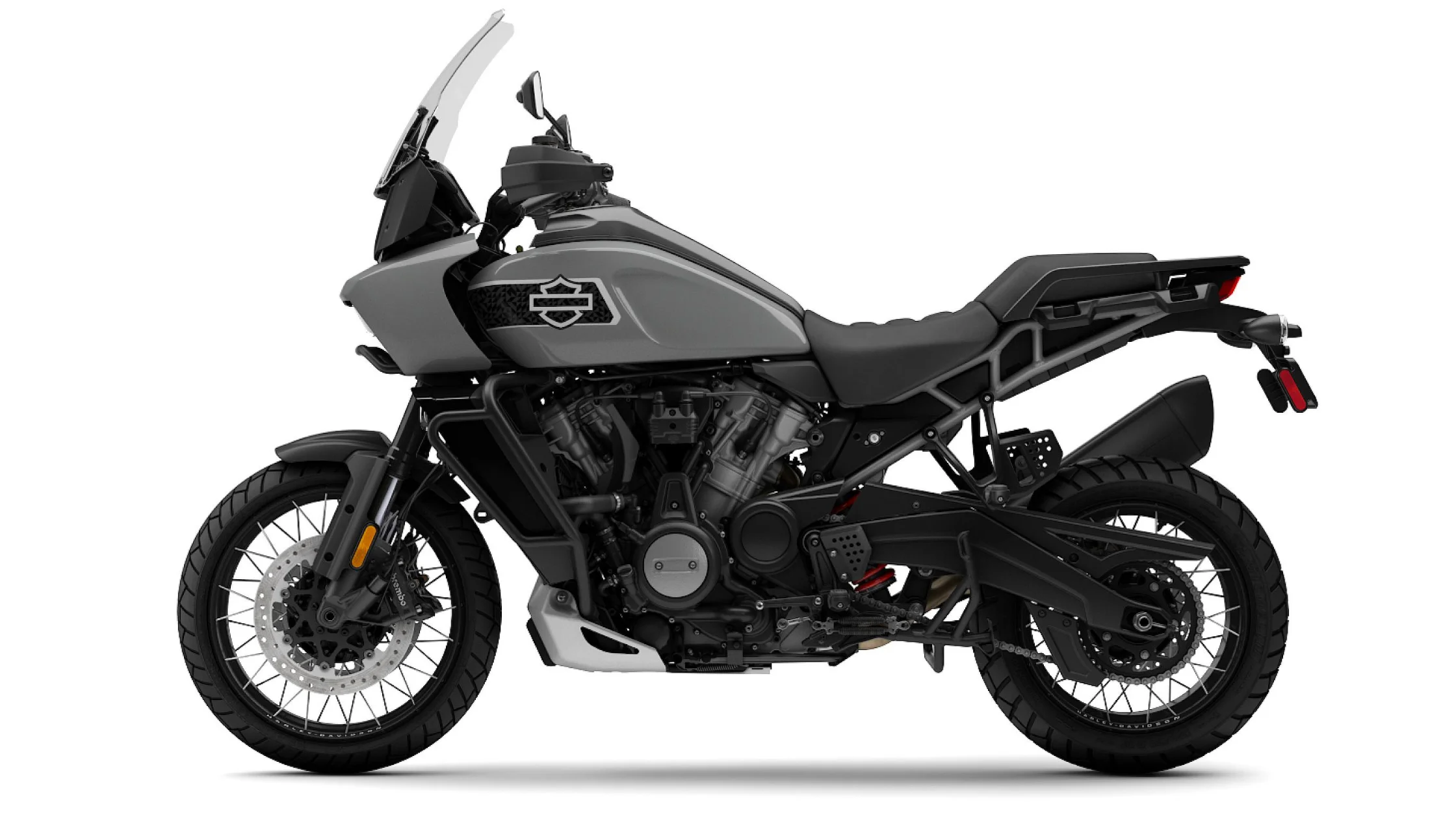

The 2026 Harley-Davidson® Pan America® 1250 Special is an adventure touring motorcycle engineered with a liquid-cooled Revolution® Max 1250 engine, electronically controlled suspension components, advanced rider safety technologies, and integrated connectivity systems. The motorcycle combines on-road stability with off-pavement capability through a high-strength chassis structure, long-travel suspension, and rider-assistance systems designed to support traction and braking performance across varying riding conditions.
The 2026 Harley-Davidson® Pan America® 1250 Special measures 89.4 inches in overall length, 38.4 inches in width, and 59.4 inches in height. The motorcycle uses a 62.4-inch wheelbase, a 25-degree rake, and a 4.3-inch trail measurement. These dimensions contribute to directional stability and handling consistency during highway travel, cornering, and low-speed maneuvering. The model also incorporates adjustable seat configurations and optional Adaptive Ride Height technology to improve accessibility during stops and low-speed operation.
Revolution® Max 1250 Engine Configuration
The 2026 Harley-Davidson® Pan America® 1250 Special uses the Revolution® Max 1250 engine with a displacement of 1,252 cc, or 76.4 cubic inches. The engine features a bore of 4.134 inches and a stroke of 2.846 inches. A 13.0:1 compression ratio supports increased combustion efficiency and power output.
The engine uses chain-driven dual overhead camshafts with hydraulic self-adjusting lifters and variable valve timing on both intake and exhaust valves. Each cylinder contains four valves. This configuration supports airflow management across a broad rpm range and contributes to consistent throttle response during acceleration and high-load riding conditions.
Electronic Sequential Port Fuel Injection manages fuel delivery. The downdraft intake system includes tuned velocity stacks and washable filter media. Exhaust routing follows a 2-into-1-into-1 layout with a catalyst integrated into the header assembly. The lubrication system uses a semi-dry sump configuration to maintain lubrication control during varying lean angles and terrain conditions.
Performance figures for the engine include a factory-rated output of 150 horsepower at 8,750 rpm and 94 ft-lb of torque at 6,750 rpm. These specifications position the 2026 Harley-Davidson® Pan America® 1250 Special within the high-performance adventure touring category while maintaining compatibility with extended-distance riding and mixed-surface operation.
Six-Speed Transmission and Drivetrain Structure
The drivetrain uses a gear-driven primary system with a 49/89 ratio and a chain-driven final drive with a 19/48 ratio. The transmission is a six-speed unit designed to balance low-speed control with highway cruising efficiency.
The clutch system uses a mechanical assist-and-slip design with eight wet clutch plates. The assist function reduces clutch lever effort during normal operation. The slip function helps reduce rear wheel instability during aggressive downshifting or rapid deceleration.
Overall transmission ratios are 13.11 in first gear, 9.687 in second gear, 7.509 in third gear, 6.057 in fourth gear, 5.08 in fifth gear, and 4.436 in sixth gear. This ratio spread allows controlled operation during low-speed technical riding while maintaining reduced engine rpm during sustained highway travel.
Chassis Engineering and Structural Components
The frame uses a stressed-member design constructed from high-strength low-alloy steel. The structure incorporates stamped, cast, and forged junctions with MIG-welded connections and an aluminum forged mid-structure. This layout reduces unnecessary chassis mass while maintaining rigidity and load-bearing capability.
The swingarm uses a one-piece cast aluminum design intended to support rear suspension stability and controlled wheel movement during changing terrain conditions. Weight figures include 542 pounds as shipped and 578 pounds in running order. The gross vehicle weight rating is 1,003 pounds.
Front axle weight rating is listed at 399 pounds, while the rear axle weight rating is 665 pounds. These ratings support the motorcycle’s carrying capability during two-up riding, luggage transport, and long-distance touring applications.
Electronically Controlled Suspension Systems
The front suspension uses a 47 mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps support steering rigidity and suspension alignment. Rear suspension consists of a linkage-mounted monoshock with automatic electronic preload control and semi-active compression and rebound damping adjustment.
Suspension travel measures 7.5 inches at both the front and rear. The electronically controlled system continuously adjusts damping behavior based on riding inputs and operating conditions. This allows the suspension to respond to acceleration, braking, road irregularities, and changing load conditions.
Optional Adaptive Ride Height technology adds automatic ride height adjustment functionality. With the optional system installed, static ground clearance increases to 8.1 inches, while dynamic ground clearance measures 6.9 inches. Adaptive Ride Height also changes seat accessibility during stops and low-speed operation.
Laden seat height ranges from 31.1 inches in the low position to 32 inches in the high position. Equipped with optional Adaptive Ride Height suspension, laden seat height changes to 30.4 inches in the low setting and 31.4 inches in the high setting. Unladen seat height measures 33.4 inches in the low setting and 34.4 inches in the high setting. Adaptive Ride Height reduces unladen seat height to 32.7 inches in the low setting and 33.7 inches in the high setting.
Adventure-Focused Wheel and Tire Specifications
The 2026 Harley-Davidson® Pan America® 1250 Special uses Michelin® Scorcher Adventure radial tires. Front tire dimensions are 120/70R19 60V, while rear tire dimensions are 170/60R17 72V. The front wheel measures 19 inches in diameter and 3 inches in width. The rear wheel measures 17 inches in diameter and 4.5 inches in width.
Standard wheel construction uses satin black aluminum cast wheels. Optional anodized aluminum tubeless laced wheels are also available in select regions. The tire and wheel combination supports pavement stability while maintaining compatibility with gravel, dirt, and uneven surfaces associated with adventure touring applications.
Lean angle capability measures 42 degrees on both the right and left sides. These figures indicate the motorcycle’s cornering range while maintaining chassis clearance and suspension functionality.
Braking Hardware and Control Technologies
The braking system uses dual floating front rotors with tower-mounted construction and radially mounted monoblock four-piston front calipers. Front brake rotor diameter measures 12.6 inches with a thickness of 0.17 inches. Rear braking uses a solid uniform expansion rotor with a floating single-piston caliper. Rear rotor diameter measures 11 inches with a thickness of 0.2 inches.
Anti-lock Braking System functionality is included as standard equipment. The motorcycle also includes Electronic Linked Braking, which coordinates front and rear brake application under certain operating conditions.
Cornering-specific braking systems are integrated into the rider safety package. Cornering Enhanced Anti-lock Braking System and Cornering Enhanced Electronic Linked Braking use vehicle lean-angle data to adjust braking intervention during cornering situations. These systems are designed to maintain controlled braking performance during changing traction conditions and directional inputs.
Integrated Rider Safety Enhancements
The 2026 Harley-Davidson® Pan America® 1250 Special incorporates multiple electronically managed rider-assistance systems. Standard systems include Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation.
The traction control system monitors wheel-speed data to manage rear-wheel traction during acceleration. Drag-torque Slip Control System functionality helps reduce rear wheel slip caused by abrupt downshifting or engine braking. Vehicle Hold Control assists with maintaining brake pressure during hill starts and incline operation.
Cornering-enhanced safety systems include the Cornering Enhanced Traction Control System, the Cornering Drag-Torque Slip Control System, and Enhanced Lift Mitigation. These systems account for lean angle and vehicle dynamics during operation. Tire Pressure Monitoring System functionality continuously reports tire pressure data through the instrument display.
Lighting Systems and Electrical Equipment
The electrical system uses a sealed absorbed glass mat 12-volt battery rated at 17.5 Ah and 310 cold cranking amps at 0 degrees Fahrenheit. Charging is managed through a three-phase 45-amp system producing 390 watts at 1,300 rpm and up to 585 watts at 2,500 rpm.
Starting functionality uses a 0.9 kW electric starter motor with direct-drive engagement. Lighting equipment includes a Daymaker® Adaptive LED headlamp with a six-segment LED banking lamp system. This lighting arrangement improves illumination during leaned cornering operations.
The rear uses an all-LED tail and stop lamp with a signature lighting design. Front and rear turn signals use LED bullet-style units. LED lighting technology contributes to reduced power consumption and increased lighting durability.
TFT Instrumentation and Connectivity Features
The 2026 Harley-Davidson® Pan America® 1250 Special uses a 6.8-inch color TFT touchscreen display. The display provides a speedometer, gear position, odometer, fuel level, tachometer, range information, clock functions, ambient temperature readings, and trip information.
Additional rider alerts include side-stand-down indication, low-temperature warning, and tip-over alerts. Integrated cruise functionality is also displayed through the instrumentation system.
Bluetooth® connectivity supports phone pairing for calls, music access, and navigation through the Harley-Davidson® mobile application. The motorcycle supports Bluetooth® phone and media functionality along with headset communication capability. USB-C charging and instrument update capability are also included, with charging output rated at 5V and 3A.
Vehicle information screens display tire pressure, engine temperature, battery voltage, and ambient air temperature data. Fuel economy is estimated at 46 mpg based on city and highway testing figures. Fuel capacity measures 5.6 gallons with a 1-gallon reserve warning capacity.
