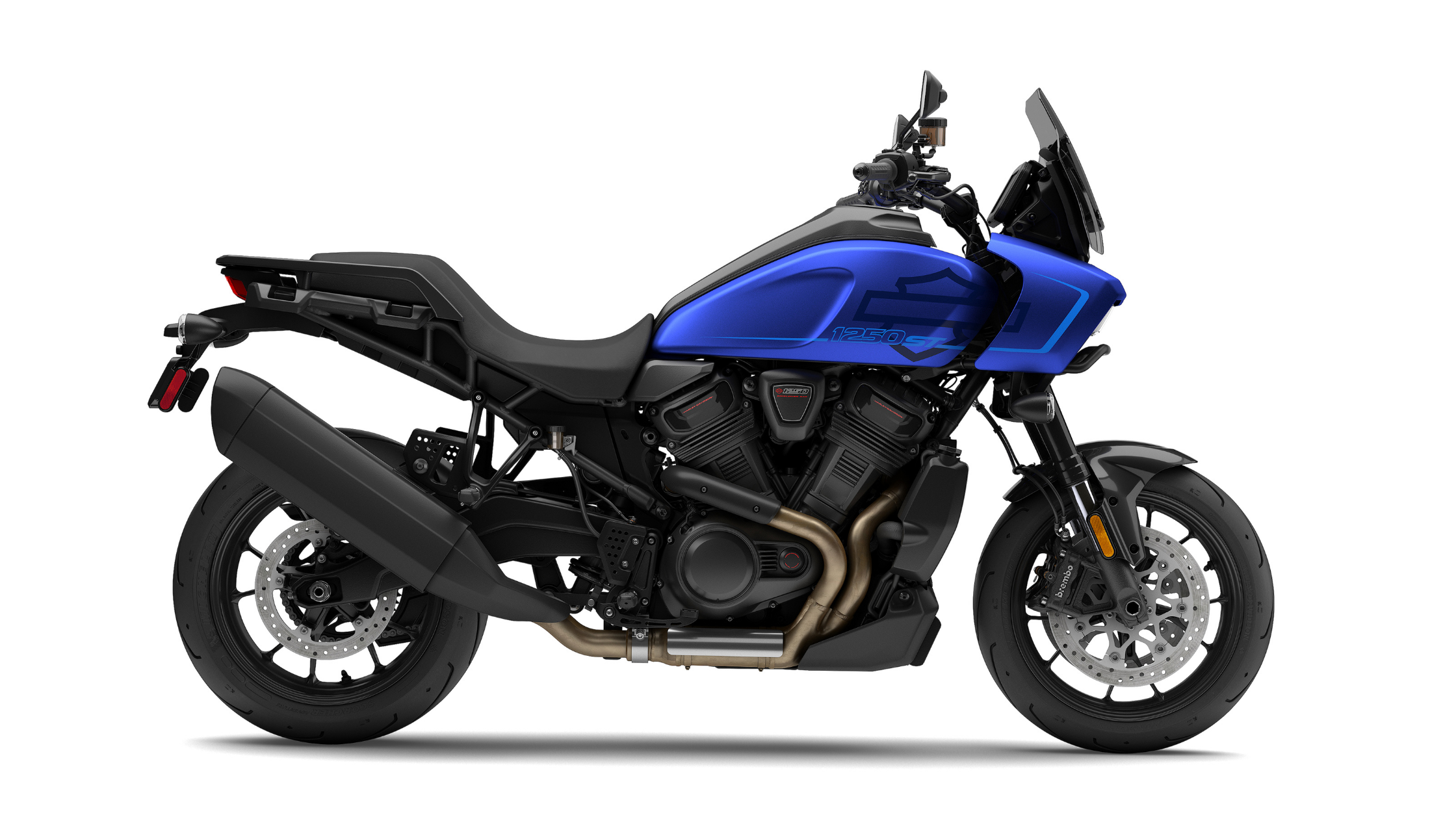

The 2026 Harley-Davidson® Pan America® 1250 ST is a motorcycle engineered around a high-output Revolution® Max 1250 powertrain, an advanced chassis structure, electronically managed suspension components, and a comprehensive suite of rider assistance technologies. Designed with a focus on performance, handling precision, rider information systems, and functional equipment, the model combines modern engineering with a broad range of integrated electronic features. Its specifications reflect a motorcycle built with attention to power delivery, chassis rigidity, braking capability, and rider connectivity. From its variable valve timing engine to its cornering-enhanced safety systems, the 2026 Harley-Davidson® Pan America® 1250 ST incorporates numerous technologies that contribute to its overall capability.
Engine and Performance
The 2026 Harley-Davidson® Pan America® 1250 ST is powered by the Revolution® Max 1250 engine, a liquid-cooled powerplant with a displacement of 1,252 cc, or 76.4 cubic inches. The engine features a bore of 4.134 inches and a stroke of 2.846 inches, creating a configuration designed to support both strong power output and responsive operation across the rpm range. A compression ratio of 13.0:1 contributes to the engine’s performance characteristics while working in conjunction with the advanced combustion and fuel delivery systems. The engine is rated at 150 horsepower, or 112 kW, at 8,750 rpm. Torque output is listed at 94 ft-lb, or 127 Nm, at 6,750 rpm using the J1349 testing methodology.
Advanced Valve Train Design
A key component of the Revolution® Max 1250 engine is its sophisticated valve train architecture. The engine utilizes chain-driven dual overhead camshafts and hydraulic self-adjusting lifters to maintain precise valve operation. Intake and exhaust variable valve timing is integrated into the design, allowing the engine to manage valve events across varying operating conditions. Four valves per cylinder support efficient airflow through the combustion chambers. Together, these systems contribute to the engine’s technical sophistication while maintaining the performance specifications documented for the model.
Fuel Delivery, Intake, and Exhaust Systems
Fuel delivery is managed through Electronic Sequential Port Fuel Injection, commonly referred to as ESPFI. This system provides controlled fuel metering and works in conjunction with a downdraft intake arrangement. The intake system incorporates tuned velocity stacks and washable filter media, creating a carefully engineered airflow path into the engine. Exhaust gases are routed through a 2-into-1-into-1 exhaust system that incorporates a catalyst within the header assembly. Engine lubrication is handled by a semi-dry sump system, while oil capacity with a filter is specified at 4.75 quarts and coolant capacity is listed at 2.32 quarts.
Drivetrain and Transmission
The drivetrain of the 2026 Harley-Davidson® Pan America® 1250 ST is designed to transfer power efficiently from the Revolution® Max engine to the rear wheel. The motorcycle uses a gear-driven primary drive system with a 49/89 ratio. Final drive duties are managed by a chain system utilizing a 19/48 ratio. This arrangement forms the foundation of the motorcycle’s power transmission layout and supports the performance characteristics outlined in the specifications. The drivetrain components are paired with a six-speed transmission that provides a broad range of operating ratios.
Clutch System and Gear Ratios
The clutch is a mechanical eight-plate wet design equipped with assist-and-slip functionality. This configuration is rated at 1090N and forms an important part of the motorcycle’s power management system. The six-speed transmission uses overall gear ratios of 13.11 in first gear, 9.687 in second gear, and 7.509 in third gear. Fourth gear carries a ratio of 6.057, while fifth gear uses a ratio of 5.08 and sixth gear is specified at 4.436. These ratios establish the progression through the gearbox and define how engine output is transmitted across the operating range.
Chassis Architecture and Dimensions
The chassis of the 2026 Harley-Davidson® Pan America® 1250 ST combines steel and aluminum construction techniques to create a rigid structural platform. The motorcycle utilizes a stressed-member high-strength low-alloy steel trellis frame incorporating stamped, cast, and forged junctions. The frame is assembled using MIG welding and includes an aluminum-forged mid-structure. This combination of materials and manufacturing methods contributes to the motorcycle’s overall structural design. Supporting the rear suspension system is a one-piece cast aluminum swingarm.
Geometry and Physical Measurements
The motorcycle measures 88.2 inches in overall length, 35.3 inches in overall width, and 52.4 inches in overall height. Wheelbase measures 62.2 inches, creating the foundation for the motorcycle’s overall proportions. Steering geometry includes a 25-degree rake and a 25-degree fork angle. Trail is specified at 3.7 inches, or 95 mm. These measurements define the motorcycle’s chassis geometry and contribute to its handling characteristics.
Weight Ratings and Operating Capacity
The 2026 Harley-Davidson® Pan America® 1250 ST has an as-shipped weight of 511 pounds and a running-order weight of 546 pounds. The Gross Vehicle Weight Rating is listed at 1,003 pounds. The front Gross Axle Weight Rating is specified at 399 pounds, while the rear Gross Axle Weight Rating is listed at 665 pounds. Fuel capacity measures 5.6 gallons, complemented by a 1-gallon reserve fuel capacity linked to the fuel injection warning system. These specifications provide important information regarding vehicle mass, operating capacity, and fuel storage.
Suspension, Wheels, and Tires
The suspension system combines electronically controlled functions with manually adjustable damping components. At the front, the motorcycle uses a 47 mm inverted fork equipped with electronically adjustable preload. Compression and rebound damping adjustments are performed manually, providing a combination of electronic and mechanical tuning capability. Aluminum fork triple clamps support the front suspension assembly and contribute to the overall chassis structure. This suspension arrangement is designed to work in conjunction with the motorcycle’s frame and wheel package.
Rear Suspension Configuration
Rear suspension duties are handled by a linkage-mounted monoshock. The system incorporates automatic electronic preload control while also providing manually adjustable compression and rebound damping. This arrangement allows the rear suspension to maintain its specified operating characteristics while offering adjustment capability through the integrated system design. The rear suspension works directly with the cast aluminum swingarm to support the motorcycle’s handling and ride dynamics. Front and rear suspension travel are both specified at 6.7 inches.
Wheel and Tire Equipment
The 2026 Harley-Davidson® Pan America® 1250 ST rides on cast aluminum wheels finished in satin black. The front wheel measures 17 inches in diameter and 3.5 inches in width. At the rear, the wheel measures 17 inches in diameter with a width of 5.5 inches. Tire equipment consists of Michelin® Scorcher "Sport" tires at both ends. The front tire specification is 120/70ZR17 58W, while the rear tire specification is 180/55ZR17 73W.
Braking Systems and Rider Safety Technology
Braking performance is supported by a hardware package that combines multi-piston calipers, large-diameter rotors, and integrated electronic controls. The front braking system uses radially mounted monoblock four-piston calipers operating on dual floating hub-mounted rotors. Each front rotor measures 12.6 inches in diameter and 0.17 inches in thickness. The rear braking system uses a floating single-piston caliper paired with a solid, uniform expansion rotor measuring 11 inches in diameter and 0.2 inches in thickness. Anti-lock Braking System functionality is included as standard equipment.
Integrated Rider Safety Enhancements
The 2026 Harley-Davidson® Pan America® 1250 ST includes a comprehensive package of rider assistance technologies. Anti-lock Braking System functionality works alongside Electronic Linked Braking technology. The motorcycle also incorporates a Traction Control System and a Drag-Torque Slip Control System. Vehicle Hold Control is included to assist with stationary operation, while a Tire Pressure Monitoring System continuously monitors tire inflation status. Wheel Lift Mitigation is also included within the standard rider safety package.
Cornering-Enhanced Systems
The motorcycle extends its safety technology package through cornering-enhanced electronic systems. Cornering Enhanced Anti-lock Brake System technology is included as standard equipment. Cornering Enhanced Electronic Linked Braking functionality works alongside the braking package during cornering conditions. Cornering Enhanced Traction Control System and Cornering Drag-Torque Slip Control System technologies are also integrated into the motorcycle. Enhanced Lift Mitigation completes the suite of cornering-related rider safety features.
Electrical System and Lighting
The electrical system supports starting, charging, lighting, instrumentation, and connectivity functions. Power is supplied by a sealed, maintenance-free absorbed glass mat battery rated at 12 volts, 17.5 Ah, and 310 cold-cranking amps at 0°F. Charging functions are managed by a three-phase 45-amp system capable of producing 390 watts at 13 volts and 1,300 rpm. Maximum output is specified at 585 watts at 13 volts and 2,500 rpm. Engine starting is handled by a 0.9 kW electric starter system with direct-drive starter motor engagement.
LED Lighting Equipment
Lighting throughout the motorcycle utilizes LED technology. The headlamp is a Daymaker® Adaptive LED Headlamp designed as the primary forward lighting unit. Rear lighting is provided by an all-LED tail and stop lamp featuring signature tail lighting. Front and rear turn signals utilize LED Bullet Turn Signal assemblies. This consistent use of LED lighting technology creates a unified lighting package across the motorcycle.
Rider Interface and Connectivity
The 2026 Harley-Davidson® Pan America® 1250 ST incorporates a digital rider interface centered around a 6.8-inch TFT display. The display provides information including speedometer readings, gear position, odometer data, fuel level, clock functions, trip information, ambient temperature, low-temperature alerts, side stand notifications, tip-over alerts, cruise information, estimated range, and tachometer indication. The display serves as a central information hub for the motorcycle’s operating data and rider notifications. Bluetooth® capability allows pairing with compatible devices for additional functionality. These integrated systems provide access to communication, navigation, and media-related features through the motorcycle’s electronic interface.
Touchscreen Functions and Device Integration
The display uses a color TFT touchscreen interface with Bluetooth®-supported connectivity. Hands-free mobile phone functionality via Bluetooth® is included as standard equipment. Bluetooth® phone and media support are integrated into the system architecture. Navigation functionality is available through the H-D Mobile App when connected through Bluetooth®. Rider and passenger intercom capability is supported through headset functionality, and text-to-speech language operation remains dependent on the connected mobile device.
Vehicle Information and Charging Features
Additional vehicle information functions include monitoring of tire pressure, engine temperature, battery voltage, and ambient air temperature. The motorcycle includes USB-C connectivity for charging and instrument updates with a 5V, 3A specification. A USB C-Type power outlet is also included with a 5V, 2.4-amp output rating. These features support device charging and system connectivity while maintaining access to important vehicle operating information. Together, the display, connectivity systems, and charging capabilities create a comprehensive rider information environment.
Comfort and Rider Accommodation
Several dimensions contribute directly to rider accommodation and operating ergonomics. The motorcycle provides a static ground clearance of 6.7 inches, supporting its overall stance and chassis layout. With the optional ARH suspension configuration, the laden seat height in the low position measures 29.4 inches. Unladen seat height in the low position with optional ARH suspension measures 31.7 inches. These measurements provide important reference points regarding rider positioning and accessibility.
Riding Position and Chassis Relationship
The relationship between wheelbase, steering geometry, suspension travel, and seat height forms a significant part of the motorcycle’s overall layout. A wheelbase of 62.2 inches works with the 25-degree rake and 3.7-inch trail measurements to establish the chassis configuration. Front and rear suspension travel of 6.7 inches contributes to the motorcycle’s overall dimensions and rider positioning. The combination of these measurements defines how the motorcycle is proportioned from front to rear. Together, these specifications describe the physical framework within which the rider interacts with the motorcycle.
