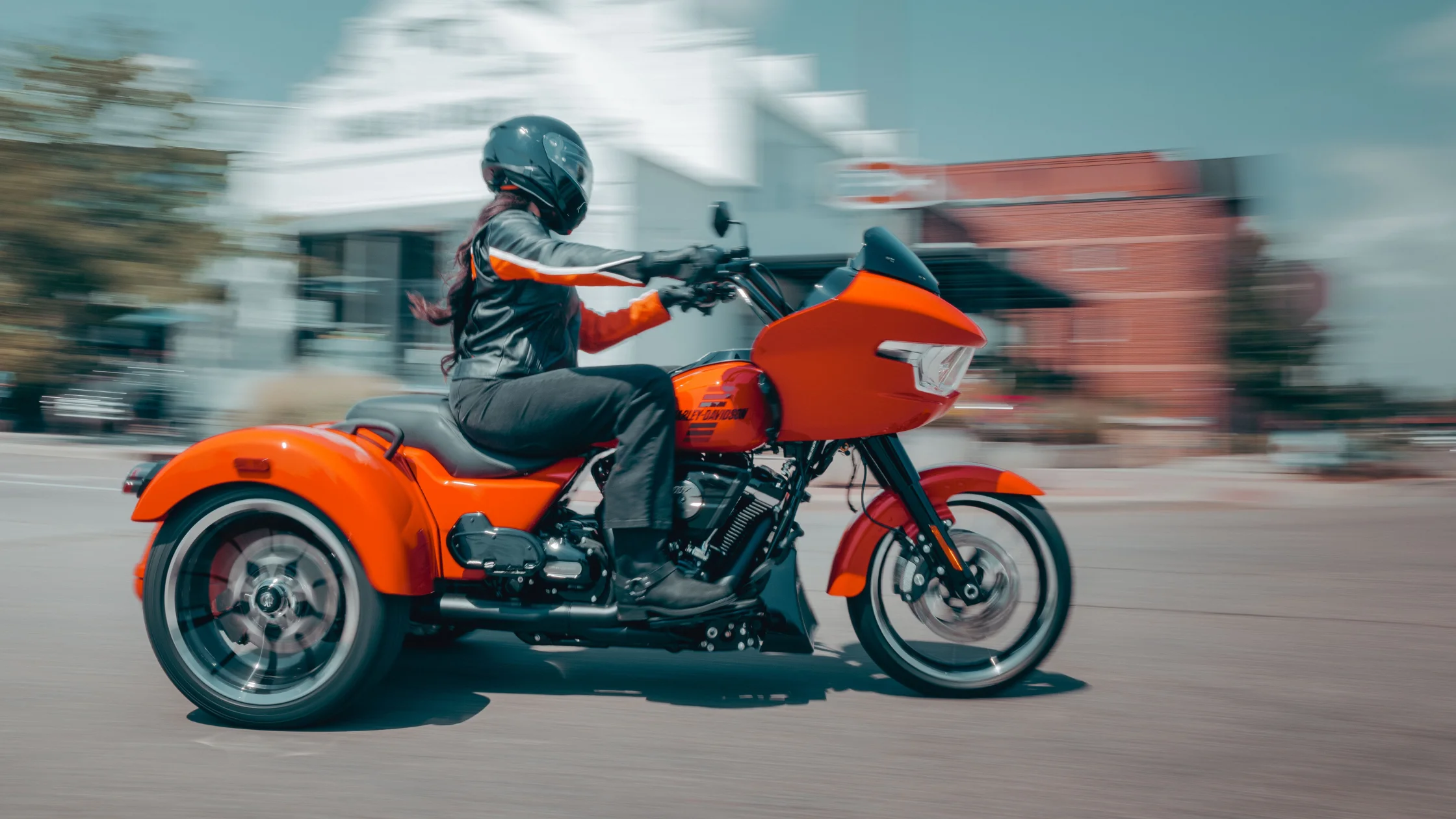

The 2026 Harley-Davidson® Road Glide® 3 is a three-wheel touring model engineered for long-distance riding, integrated rider technology, and high-displacement V-twin performance. The model combines the Milwaukee-Eight® VVT 117 engine, a frame-mounted fairing design, electronic rider assistance systems, integrated infotainment, and a reverse system within a touring-focused chassis configuration. Its specifications support highway travel, rider comfort, low-speed maneuvering, and onboard connectivity without sacrificing the structural characteristics associated with Harley-Davidson® touring platforms.
The 2026 Harley-Davidson® Road Glide® 3 measures 103 inches in length, 57.5 inches in width, and 51.4 inches in overall height. The wheelbase extends to 67.7 inches, contributing to directional stability during highway riding. The steering geometry includes a 26-degree rake, a 32-degree fork angle, and 3.8 inches of trail. Static ground clearance measures 5.5 inches. Seat height measures 26.5 inches in laden form and 27.9 inches unladen. These dimensions establish a lower seating position while maintaining sufficient chassis clearance and touring proportions.
Milwaukee-Eight® VVT 117 Engine Configuration
The 2026 Harley-Davidson® Road Glide® 3 uses the Milwaukee-Eight® VVT 117 engine with a displacement of 117 cubic inches, or 1,923 cc. The engine uses pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. Variable Valve Timing technology contributes to performance efficiency across varying engine speeds while supporting torque delivery during acceleration and cruising conditions.
The engine has a bore of 4.075 inches and a stroke of 4.5 inches. Compression ratio is rated at 10.3:1. Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The lubrication system uses a pressurized dry-sump configuration designed for stable oil management during extended operation.
Performance figures list 129 ft-lb of torque at 3,250 rpm and 105 horsepower at 4,600 rpm. These figures support the touring application of the 2026 Harley-Davidson® Road Glide® 3 by providing low-end pulling capability and sustained highway output. The engine also uses a washable paper air cleaner and a 2-1-2 dual exhaust system integrated into the touring chassis structure.
Fuel capacity measures 6 gallons, with a reserve fuel warning activating at approximately 1 gallon remaining. Estimated fuel economy is listed at 39 mpg.
Touring Drivetrain and Reverse Functionality
The drivetrain configuration supports both highway touring and low-speed maneuverability. Harley-Davidson® equips the 2026 Harley-Davidson® Road Glide® 3 with a 6-Speed Cruise Drive® transmission paired with an electric reverse system. The reverse feature is actuated through handlebar-mounted hand controls, simplifying movement in parking environments and confined spaces.
Primary drive uses a chain with a 34/46 ratio, while the final drive uses a belt with a 30/70 ratio. Clutch operation is handled through a mechanically actuated 10-plate wet Assist & Slip clutch. This configuration contributes to smoother clutch engagement and controlled deceleration during downshifts.
The transmission gear ratios are calibrated for touring operation. First gear uses a 10.534 overall ratio, followed by 7.302 in second gear, 5.423 in third gear, 4.392 in fourth gear, 3.742 in fifth gear, and 3.000 in sixth gear. This progression supports controlled launch characteristics and lower engine speeds during sustained cruising.
Structural Engineering and Touring Chassis Design
The 2026 Harley-Davidson® Road Glide® 3 uses a mild-steel, square-section backbone frame with twin down-tubes. This frame configuration provides the structural support required for the touring platform, rear trike assembly, engine integration, and luggage carrying capacity. The swingarm uses permanent mold cast aluminum construction.
Vehicle weight measures 1,146 pounds as shipped and 1,184 pounds in running order. Gross Vehicle Weight Rating is listed at 1,700 pounds. Gross Axle Weight Rating measures 511 pounds at the front and 1,189 pounds at the rear. These specifications reflect the load-bearing requirements associated with touring operation and three-wheel stability.
The luggage compartment provides 2 cubic feet of cargo volume. Combined with the large fuel tank and touring geometry, the 2026 Harley-Davidson® Road Glide® 3 is configured for extended-distance operation while maintaining onboard storage functionality.
Suspension Calibration and Wheel Equipment
Front suspension uses a 49 mm dual bending valve fork with 4.6 inches of suspension travel. This fork system is designed to absorb road irregularities while maintaining steering stability. Rear suspension uses hand-adjustable emulsion rear shocks with 3.5 inches of travel. The adjustable configuration allows the suspension to accommodate varying rider and cargo loads.
The front wheel uses a Gloss Black and machined 5-spoke cast aluminum design measuring 19 inches in diameter and 3.5 inches in width. Rear wheels use matching Gloss Black and machined 5-spoke cast aluminum construction with an 18-inch diameter and 7-inch width.
The tire package consists of Dunlop® Harley-Davidson® Series tires. The front tire uses a D408F model in the MT 130/60B19 M/C 61H specification. Rear tires use TK100 models in the P215/45R18 83T specification. The combination of bias front construction and radial rear construction supports the touring characteristics and weight distribution requirements of the trike platform.
Integrated Braking Systems and Control Technologies
The braking system combines large-diameter rotors with electronically managed rider assistance systems. Front braking uses dual floating rotors paired with 32 mm four-piston fixed calipers. Rear braking uses a fixed rotor with a floating 36 mm piston integrated parking brake caliper.
Front rotor diameter measures 11.8 inches with a thickness of 0.197 inches. Rear rotor diameter also measures 11.8 inches, with a thickness of 0.276 inches. Dual front braking configuration contributes to controlled stopping performance under touring loads.
The 2026 Harley-Davidson® Road Glide® 3 includes an Anti-lock Braking System as standard equipment. Electronic Linked Braking is also standard, coordinating braking force distribution between front and rear systems. Additional rider assistance systems include a Traction Control System and a Drag-torque Slip Control System.
Cornering rider safety systems are also integrated into the platform. These include the Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. These systems are calibrated to assist with braking and traction management during cornering conditions.
Frame-Mounted Fairing and Aerodynamic Structure
The 2026 Harley-Davidson® Road Glide® 3 uses the Road Glide® platform’s frame-mounted fairing design. Unlike fork-mounted fairings, this structure attaches directly to the frame rather than the handlebars. This configuration reduces steering influence from wind pressure during highway operation and contributes to directional consistency.
The front fairing integrates the infotainment display, digital instrumentation, and speaker system within the rider’s forward field of view. The fairing structure also supports aerodynamic management during extended touring use.
Overall width measures 57.5 inches due to the trike's rear assembly. This wider rear structure contributes to the vehicle’s three-wheel stance and rear axle stability characteristics.
Electrical Capacity and LED Lighting Systems
The electrical system uses a sealed, maintenance-free 12-volt battery rated at 28 amp-hours and 405 cold cranking amps. Charging is managed through a three-phase 48-amp system producing 600 watts at 13 volts and 2,000 rpm, with maximum output reaching 625 watts at 13 volts.
Starting is handled by a 1.6 kW electric starter motor with solenoid shift engagement. The charging and starting systems are designed to support the demands of integrated infotainment, lighting, navigation, and accessory power requirements.
LED lighting is standard throughout the motorcycle. The headlamp uses LED illumination, along with LED tail and stop lighting, front signal lighting, and rear turn signals. LED systems contribute to visibility and electrical efficiency while reducing maintenance requirements compared to conventional lighting systems.
A 15-watt USB-C electric power accessory port is positioned in the media storage compartment. This connection supports smartphone charging and accessory integration during operation.
Skyline™ OS Infotainment and Connectivity Features
The infotainment system is based on Skyline™ OS and uses a 12.3-inch full-color TFT display. Digital gauges are integrated directly into the display layout, consolidating vehicle information within a single interface.
The audio system uses two 5.25-inch speakers with 50 watts per channel output. Standard radio functionality includes AM and FM capability. The system also supports SD card, flash drive, and MP3 playback through USB connectivity.
Bluetooth® functionality supports mobile phone connection, media playback, and headset integration. Rider and passenger intercom compatibility is available with separately equipped Harley-Davidson® headsets.
The 2026 Harley-Davidson® Road Glide® 3 supports Apple CarPlay® through wireless or wired connection methods. Smartphone integration is managed through USB-C and MTP-compatible interfaces located in the inner fairing storage area.
Embedded navigation functionality is included with traffic and weather capability through Wi-Fi hotspot connectivity. The infotainment system also includes a vehicle information screen displaying air temperature, oil pressure, and Engine Idle Temperature Management System information.
