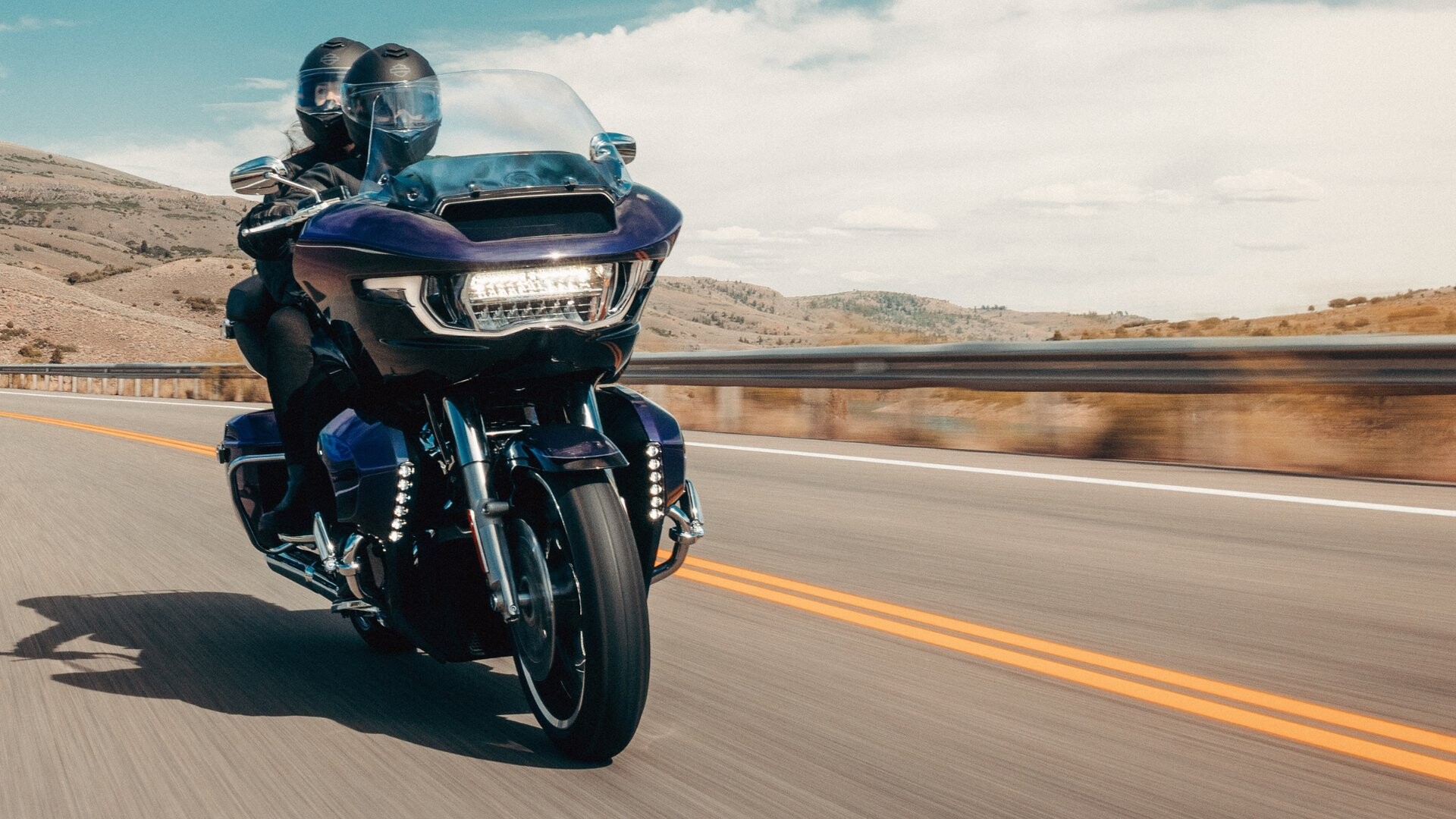

The 2026 Harley-Davidson® Road Glide® Limited is engineered as a full-size touring motorcycle built around long-distance capability, structural stability, and integrated rider technology. The model combines a large-displacement V-twin engine, touring-focused chassis geometry, advanced braking systems, and a fully integrated infotainment interface. Its design prioritizes measurable performance characteristics such as torque output, suspension travel, frame rigidity, and electronic rider assistance functions. The motorcycle uses components selected to support sustained highway riding, consistent control under load, and predictable handling across varied road surfaces.
Dimensionally, the motorcycle measures approximately 103.1 inches in overall length with a width of 40.7 inches and a height of 57 inches. The wheelbase of 64 inches contributes to straight-line stability and balanced weight distribution. Laden seat height is approximately 27.5 inches, while unladen height reaches about 29 inches. Static ground clearance is rated at 5.1 inches, supporting controlled cornering while maintaining touring comfort. Steering geometry includes a 26-degree rake and a 29.25-degree fork angle with 6.8 inches of trail, specifications intended to support predictable steering response and stability at highway speeds.
Weight figures reflect the full touring configuration. The motorcycle weighs approximately 883 pounds as shipped and about 919 pounds in running order. Gross vehicle weight rating is listed at 1,360 pounds, allowing additional capacity for riders, passengers, and luggage. Storage volume reaches approximately 5.05 cubic feet, aligning with long-distance travel requirements and extended riding schedules.
Milwaukee-Eight® VVT 117 Engine Specifications and Output
The engine used in the 2026 Harley-Davidson® Road Glide® Limited is the Milwaukee-Eight® VVT 117, a displacement-driven V-twin configured for strong low-end and midrange performance. Displacement measures 117 cubic inches, equivalent to 1,923 cubic centimeters. The engine uses a pushrod-operated overhead valve layout with hydraulic self-adjusting lifters and four valves per cylinder, simplifying maintenance while maintaining consistent valve operation. Bore and stroke measurements are 4.075 inches and 4.5 inches, respectively, producing a long-stroke configuration optimized for torque delivery.
Compression ratio is specified at 10.3:1, supporting combustion efficiency while maintaining operational stability under touring conditions. The fuel system uses Electronic Sequential Port Fuel Injection, which meters fuel delivery according to throttle position and load requirements. A fiberglass washable air cleaner supports airflow management, while a 2-1-2 dual exhaust system with tapered mufflers manages exhaust flow and rumble output.
Performance figures show engine torque rated at approximately 131 ft-lb at 3,250 rpm, with peak power measured at 106 horsepower at 4,600 rpm. These output characteristics emphasize accessible power in lower engine ranges rather than high-rpm operation. The lubrication system uses a pressurized dry-sump design, supporting thermal stability and consistent oil circulation during extended operation. Fuel capacity is approximately 6 gallons, with a reserve warning system activated at roughly 1 gallon remaining. Engine oil capacity with filter is listed at 5 quarts.
Drivetrain Engineering and Transmission Ratios
Power transfer from the engine to the rear wheel occurs through a primary chain drive paired with a belt final drive. The primary drive uses a 34/46 ratio configuration, while the belt final drive is set at a 32/68 ratio. This combination balances durability with reduced maintenance requirements and smooth power delivery characteristics suitable for long-distance touring.
The clutch system is mechanically actuated and uses a 10-plate wet configuration with Assist and Slip functionality. Assist functionality reduces clutch lever effort, while the slip mechanism improves control during aggressive deceleration or downshifting by minimizing rear wheel instability.
A 6-Speed Cruise Drive® transmission handles gear management. Gear ratios progress from 9.593 in first gear down to 2.875 in sixth gear, creating gradual spacing that supports controlled acceleration and relaxed highway cruising. Taller upper ratios reduce engine speed during sustained travel, contributing to smoother operation and improved efficiency. The drivetrain layout emphasizes consistent traction and controlled torque delivery rather than rapid acceleration characteristics.
Chassis Construction and Structural Components
The frame utilizes mild steel construction with a tubular structure combined with stamped and welded backbone sections. Cast and forged junctions reinforce key stress areas, while twin down-tubes and a bolt-on rear frame provide additional rigidity for passenger and luggage loads. The swingarm also uses mild steel with forged junctions and welded sections to maintain alignment under load.
Front suspension consists of a 49 mm Dual Bending Valve fork. This design assists with damping consistency and stability during braking and cornering. Rear suspension uses dual adjustable emulsion shocks that include remote preload adjustment on the left side and threaded preload adjustment on the right side. Suspension travel measures approximately 4.6 inches at the front and 3 inches at the rear. The adjustment range allows tuning based on rider weight, passenger load, or luggage volume.
Wheel construction uses cast aluminum for both front and rear assemblies. The front wheel measures 19 inches in diameter with a width of 3.5 inches, while the rear wheel measures 18 inches in diameter with a width of 5 inches. Tire specifications include a 130/60B19 front tire and a 180/55B18 rear tire, both from the Dunlop® Harley-Davidson® Series. These specifications support load stability and consistent traction for touring applications.
Braking Hardware and Integrated Control Systems
Braking components include dual front floating rotors paired with fixed four-piston calipers and a single rear rotor with an axially mounted caliper. Front rotor diameter is approximately 12.6 inches, while the rear rotor measures 11.8 inches. Front thickness is listed at 0.18 inches and rear thickness at 0.28 inches. This configuration emphasizes controlled stopping force suitable for the motorcycle’s mass and touring purpose.
The motorcycle includes Anti-lock Braking System functionality as standard equipment. Electronic Linked Braking distributes braking force between wheels to improve stability during deceleration. Additional systems include Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, and Tire Pressure Monitoring System. These systems assist in maintaining traction and rider control under varied conditions.
Cornering-specific enhancements include Cornering Enhanced ABS, Cornering Electronic Linked Braking, Cornering Traction Control, and Cornering Drag-torque Slip Control. These systems adapt intervention levels based on lean angle data to support controlled braking and throttle operation in turns. Wheel lift mitigation is not included. Lean angle capability is approximately 31 degrees on both the left and right sides.
Electrical Architecture and Lighting Systems
The electrical system uses a sealed, maintenance-free 12-volt battery rated at 28 amp-hours with a 405 cold-cranking amp specification. Charging is managed by a three-phase 58-amp system capable of producing a maximum output of approximately 754 watts at 13 volts. Starting is performed through a 1.6 kW electric starter motor with solenoid shift engagement.
Lighting components use LED technology for improved efficiency and consistent illumination. The headlamp, tail and stop lamp, front signals, and rear turn signals are all LED units. Auxiliary LED fog lamps are integrated into the lower fairings to improve visibility. Gauges are digitally integrated within the display interface, reducing the need for separate analog instrumentation.
Power accessories include a 15-watt USB-C electric power outlet located in the media storage area and an additional outlet in the Tour-Pak®. These features support charging and device connectivity for navigation or communication equipment.
Infotainment and Digital Integration
The infotainment system operates on Skyline™ OS and uses a 12.3-inch full-color TFT display as the primary user interface. The display integrates vehicle information, media controls, and navigation functions into a centralized system. Audio output is rated at 50 watts per channel and uses four speakers, consisting of two fairing-mounted speakers and two Tour-Pak®-mounted speakers measuring 6.5 inches each.
Media compatibility includes AM and FM radio along with USB-connected external media storage. Bluetooth® functionality supports mobile phone pairing, headset integration, and media playback. Apple CarPlay® compatibility is supported through wired or wireless connection. Navigation capability is integrated through an embedded GPS system linked to Wi-Fi hotspot functionality.
Additional vehicle information displayed includes air temperature, oil pressure, and engine idle temperature management status. USB-C and MTP compatibility allow smartphone integration through fairing storage connections. Rider and passenger intercom capability is available with compatible headsets, supporting communication during touring travel.
Fuel Efficiency and Operational Range
Estimated fuel economy is listed at approximately 45 mpg under combined city and highway conditions. The combination of fuel capacity and efficiency provides an extended operating range suitable for touring routes. Fluid capacities include a transmission capacity of roughly one quart, a primary chain case capacity near 1.1 quarts, and a coolant capacity of approximately 0.82 quarts. These specifications support consistent thermal management and drivetrain reliability during sustained operation.
The overall engineering emphasis focuses on balancing power output, fuel consumption, and rider comfort. The motorcycle’s dimensions and drivetrain configuration contribute to stable cruising performance without excessive engine strain.
