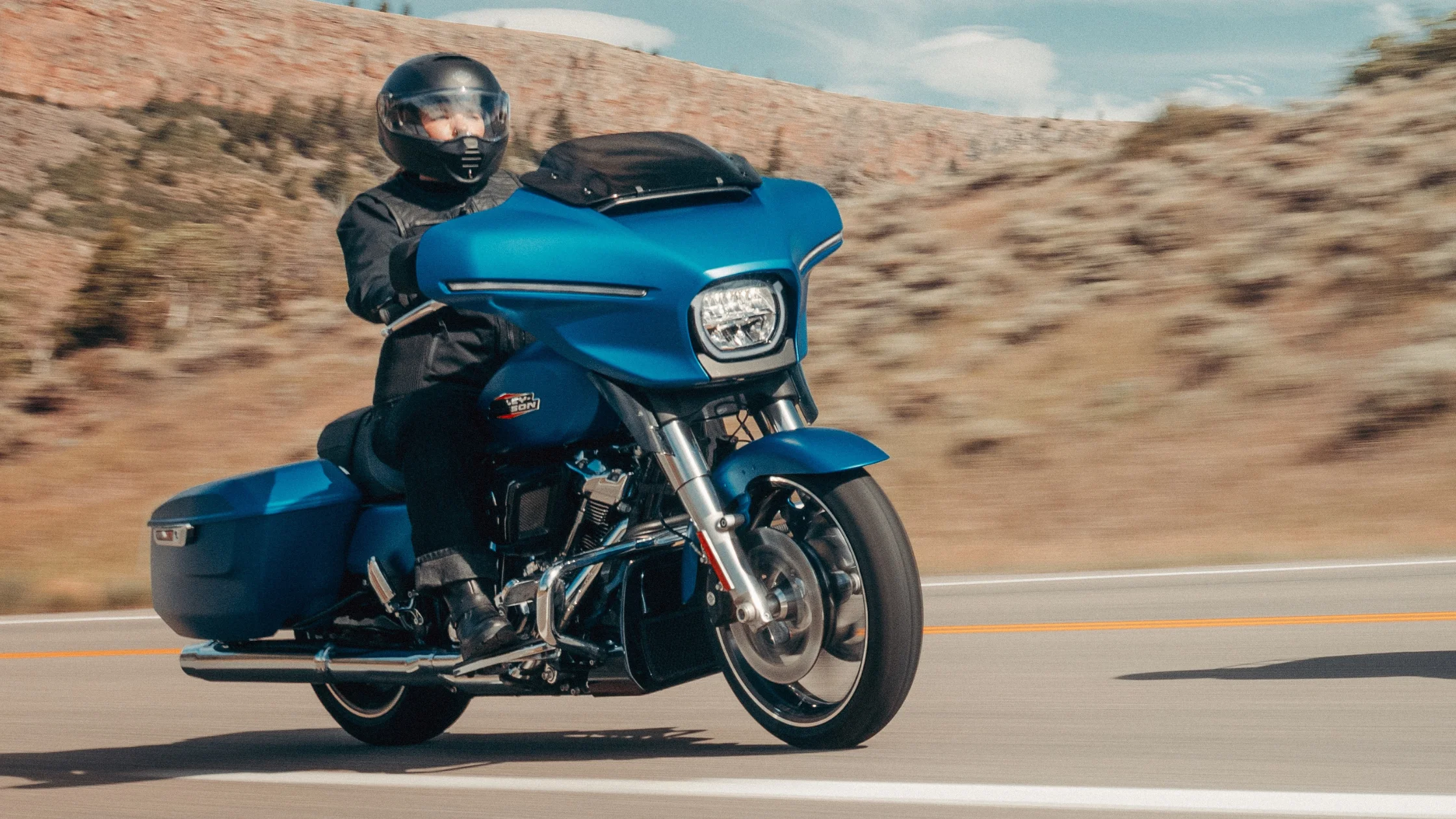

The 2026 Harley-Davidson® Street Glide® is configured for touring performance with a focus on engine output, chassis balance, integrated rider technology, and electronic control systems. The motorcycle uses the Milwaukee-Eight® 117 engine paired with a 6-Speed Cruise Drive® transmission and a frame structure engineered for highway stability and rider control. Its combination of suspension components, infotainment equipment, rider assistance systems, and touring dimensions positions the model within the brand’s long-distance touring segment.
The motorcycle measures 94.9 inches in length, 38.4 inches in width, and 53.1 inches in height. Wheelbase measures 64 inches, supporting directional stability during highway operation and extended-distance riding. The laden seat height is 26.4 inches, while the unladen seat height measures 28.1 inches. Static ground clearance is rated at 5.5 inches. Steering geometry includes a 26-degree rake angle, 29.25-degree fork angle, and 6.7 inches of trail.
Milwaukee-Eight® 117 Engine Configuration
The 2026 Street Glide® uses the Milwaukee-Eight® 117 V-Twin engine with a displacement of 117 cubic inches, equivalent to 1,923 cc. The engine uses pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. Bore measures 4.075 inches and the stroke measures 4.5 inches. Compression ratio is rated at 10.3:1.
The engine produces 130 ft-lb of torque at 3,250 rpm and 105 horsepower at 4,600 rpm. These output figures support low-rpm torque delivery and sustained highway performance. Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The lubrication system uses a pressurized dry-sump configuration designed for consistent oil circulation during extended operation.
The intake system includes a washable fiberglass air cleaner. Exhaust routing uses a 2-1-2 dual exhaust system with tapered mufflers. This configuration supports balanced exhaust flow and touring-oriented rumble management. Harley-Davidson® specifies premium fuel with a recommended minimum octane rating of 91.
Six-Speed Drivetrain and Gear Management
Power from the Milwaukee-Eight® 117 engine is transferred through a 6-Speed Cruise Drive® transmission. The drivetrain combines chain primary drive and belt final drive systems. Primary drive ratio is listed at 34/46, while the final drive ratio is 32/68.
The clutch system uses a mechanically actuated 10-plate wet clutch with Assist and Slip functionality. The Assist feature reduces clutch lever effort during operation, while the Slip function supports smoother deceleration and controlled downshifts. This arrangement contributes to stable power transfer during acceleration and gear transitions.
Overall gear ratios are calibrated for both urban and highway riding conditions. First gear ratio is 9.593, followed by 6.65 in second gear, 4.938 in third gear, 4.0 in fourth gear, 3.407 in fifth gear, and 2.875 in sixth gear. The wide ratio spread supports controlled low-speed operation while maintaining lower engine rpm during highway cruising.
Touring Chassis and Structural Engineering
The frame uses mild steel construction with a tubular layout and a two-piece stamped and welded backbone. Cast and forged junctions reinforce critical connection points throughout the chassis. Twin down-tubes and a bolt-on rear frame with forged fender supports are integrated into the structure. Manufacturing processes include MIG welding throughout the frame assembly.
The swingarm also uses mild steel construction with a two-piece drawn and welded section. Forged junctions strengthen the rear suspension mounting points and contribute to overall chassis rigidity. The structural configuration is intended to maintain touring stability while supporting the motorcycle’s operating weight and luggage capacity.
Weight as shipped is listed at 774 pounds, while running-order weight measures 811 pounds. The Gross Vehicle Weight Rating is 1,360 pounds. Front Gross Axle Weight Rating is 500 pounds, and the rear Gross Axle Weight Rating is 927 pounds. Luggage capacity is rated at 2.42 cubic feet.
Suspension Geometry and Ride Control
Front suspension uses a 49 mm Dual Bending Valve fork with 4.6 inches of travel. The fork configuration is designed to balance damping control with highway ride comfort. Rear suspension uses dual outboard emulsion shocks with preload adjustability and 3 inches of travel.
Preload adjustment allows riders to compensate for varying cargo and passenger loads. Suspension travel measurements support touring applications while maintaining consistent chassis geometry during operation. Lean angle capability is rated at 32 degrees on both the right and left sides.
The combination of wheelbase, steering geometry, suspension travel, and frame rigidity contributes to directional stability during sustained highway speeds and cornering transitions.
Wheel and Tire Specifications
The Street Glide® uses cast aluminum wheels front and rear. Front wheel diameter measures 19 inches with a width of 3.5 inches. Rear wheel diameter measures 18 inches with a width of 5 inches.
Front tire specification is 130/60B19 M/C 61H using the Dunlop® Harley-Davidson® Series D408F model. Rear tire specification is 180/55B18 M/C 80H using the Dunlop® Harley-Davidson® Series D407T model. Both tires use bias blackwall construction.
The wheel and tire combination is configured to support touring stability, steering consistency, and load management during long-distance operation.
Brake Hardware and Electronic Braking Systems
Front braking uses dual floating rotors paired with four-piston fixed axially mounted calipers. Rotor diameter at the front measures 12.6 inches with a thickness of 0.18 inches. Rear braking uses a fixed rotor with a single axially mounted caliper. Rear rotor diameter measures 11.8 inches with a thickness of 0.28 inches.
The motorcycle includes Anti-lock Braking System as standard equipment. Electronic Linked Braking is also included, allowing brake force distribution between front and rear systems during operation. These systems are integrated with the motorcycle’s electronic rider assistance package.
The braking system is engineered to support controlled deceleration across varying road conditions while maintaining predictable brake response.
Cornering Rider Safety Technologies
The 2026 Street Glide® includes multiple cornering-focused rider safety systems. Cornering Enhanced Anti-lock Brake System adjusts braking intervention based on lean angle conditions. Cornering Enhanced Electronic Linked Braking manages front and rear brake force distribution during cornering operation.
Cornering Enhanced Traction Control System monitors wheel behavior during acceleration while leaned into turns. Cornering Drag-Torque Slip Control System manages rear wheel behavior during downshifting and throttle reduction.
Additional rider safety technologies include standard Traction Control System, Drag-Torque Slip Control System, Vehicle Hold Control, and Tire Pressure Monitoring System. Vehicle Hold Control assists during stopped conditions on inclined surfaces by maintaining brake pressure temporarily after brake release.
Electrical System and Lighting Components
The electrical system uses a sealed maintenance-free 12-volt battery rated at 28 amp-hours with 405 cold cranking amps. Charging output comes from a three-phase 58-amp system capable of producing 754 watts maximum power at 13 volts.
Starting operation uses a 1.6 kW electric starter with solenoid shift starter motor engagement. This configuration supports reliable engine startup under varying operating conditions.
Lighting components use LED technology throughout the motorcycle. The headlamp, tail and stop lamp, front signal lights, and rear turn signals all use LED assemblies. LED lighting contributes to reduced electrical demand and improved illumination consistency.
The motorcycle also includes a 15-watt USB-C electric power accessory port located within the media storage compartment.
Skyline™ OS Infotainment and Display Integration
The infotainment system operates through Skyline™ OS using a 12.3-inch full-color TFT display. Digital gauges are integrated directly within the screen layout, reducing the need for separate analog instrumentation.
The infotainment system includes standard AM and FM radio functionality. Media playback through USB connection supports SD cards, flash drives, and MP3 compatibility. Bluetooth® connectivity supports phone integration, media playback, and headset communication.
Apple CarPlay® compatibility is included through both wireless and wired connections. Rider and passenger intercom functionality is supported through separately sold Harley-Davidson® headsets with VOX capability.
Vehicle information displayed through the system includes air temperature, oil pressure, and Engine Idle Temperature Management System information. Text-to-speech functionality is also integrated into the infotainment platform.
Navigation Systems and Touring Connectivity
The Street Glide® includes an embedded GPS navigation system integrated into the infotainment platform. Navigation functionality includes traffic and weather information accessed through Wi-Fi hotspot capability in supported markets with subscription services.
Bluetooth® connectivity allows communication between the motorcycle and compatible mobile devices. USB-C connectivity within the fairing storage compartment supports charging and device integration.
The infotainment and navigation systems are configured to centralize vehicle information, communication controls, and route guidance within a single interface designed for touring applications.
Fuel Capacity and Operating Range
Fuel capacity is rated at 6 gallons with a 1-gallon reserve warning indicator integrated into the fuel injection system. Estimated fuel economy is listed at 44 mpg under combined city and highway testing conditions.
Oil capacity with filter is 5 quarts. Transmission capacity is 1 quart, while primary chain case capacity measures 1.1 quarts. Coolant capacity is rated at 0.82 quarts.
These operating capacities are configured to support long-distance touring operation with reduced frequency of refueling and fluid servicing during extended rides.
