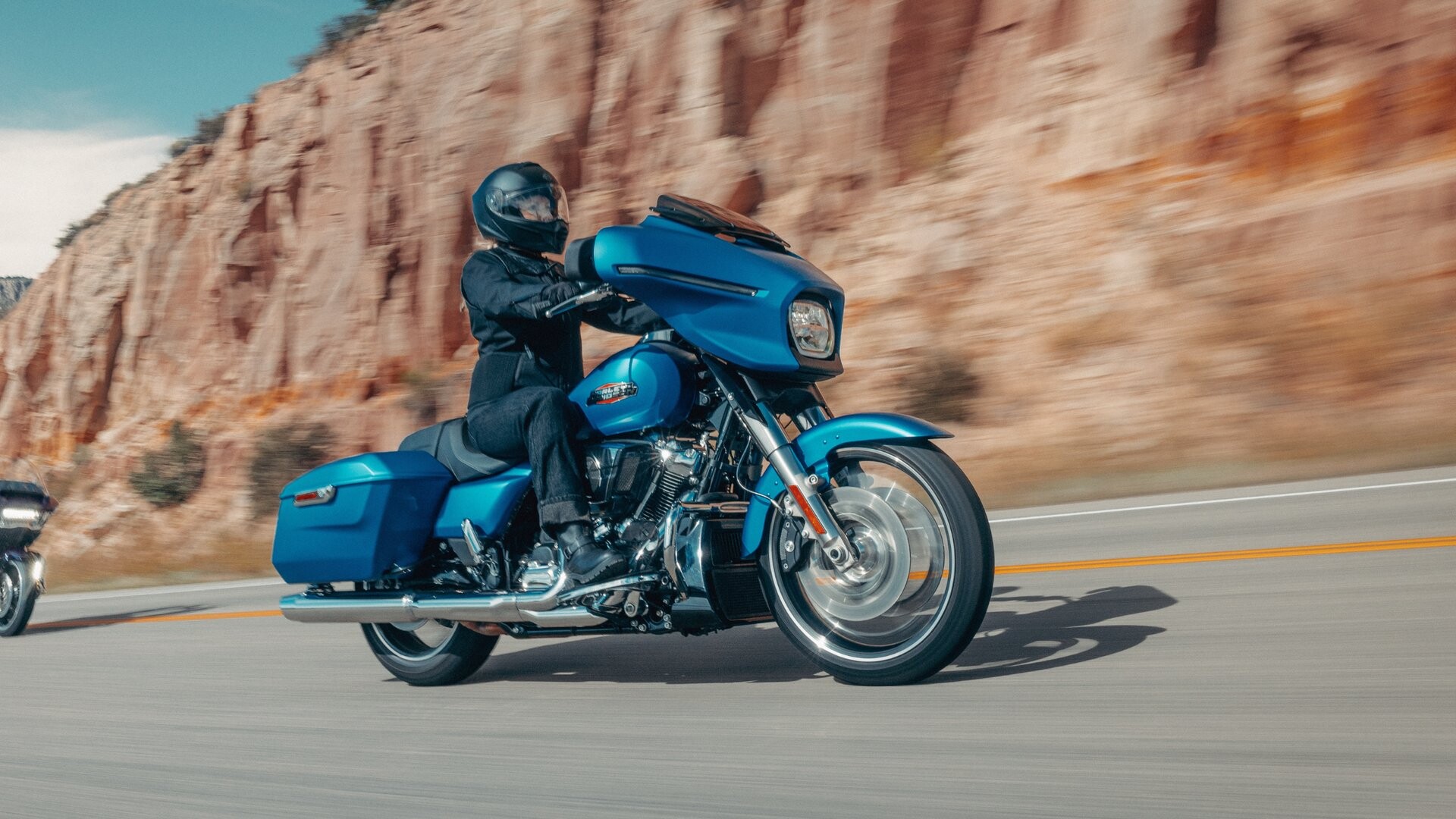

The 2026 Harley-Davidson® Street Glide® is a touring motorcycle engineered with a clear focus on mechanical capability, integrated technology, and structural stability. Its design combines a large-displacement V-twin engine, a reinforced touring chassis, electronic rider aids, and an advanced infotainment platform. Every component is configured to support long-distance riding while maintaining predictable handling and efficient power transfer. The motorcycle uses a fixed fairing layout, integrated storage, and modern digital instrumentation to consolidate functionality into a single touring platform. The specifications emphasize measured performance, controlled ergonomics, and consistent system integration rather than experimental design elements. The result is a model built around established engineering principles and refined technical systems that support both highway travel and daily riding operations.
Engine Architecture and Output Characteristics
The 2026 Harley-Davidson® Street Glide® uses the Milwaukee-Eight® 117 engine, a pushrod-operated V-twin configured with overhead valves and hydraulic self-adjusting lifters. This design reduces maintenance requirements while maintaining stable valve operation during varying riding conditions. The engine features four valves per cylinder, allowing improved airflow management and controlled combustion efficiency. Bore measures 4.075 inches, while the stroke measures 4.5 inches, producing a displacement of 117 cubic inches, or 1,923 cubic centimeters. The compression ratio is specified at 10.3:1, supporting balanced combustion efficiency and torque delivery. Fuel delivery is controlled by Electronic Sequential Port Fuel Injection, enabling precise metering and consistent throttle response.
Engine output is rated at 130 foot-pounds of torque at 3,250 rpm and 105 horsepower at 4,600 rpm. These figures indicate an emphasis on mid-range pulling power rather than high-rpm performance. The motorcycle uses a fiberglass washable air cleaner to maintain airflow quality and reduce replacement frequency. Exhaust gases are routed through a 2-1-2 dual exhaust system with tapered mufflers designed to maintain consistent back pressure and smooth output delivery. Lubrication relies on a pressurized dry-sump system that separates oil storage from the crankcase, helping maintain stability during long rides and sustained operation.
Drivetrain Configuration and Gear Management
Power from the engine transfers through a chain-driven primary system with a 34/46 ratio, followed by a belt final drive using a 32/68 ratio. This arrangement prioritizes durability, reduced maintenance, and smooth power transition. The clutch is a mechanically actuated 10-plate wet design incorporating Assist and Slip functionality. Assist action reduces lever effort during operation, while slip control moderates engine braking during downshifts to improve stability.
The transmission is a 6-Speed Cruise Drive® system designed to balance acceleration and highway efficiency. The gear ratio spread begins with a 9.593 first gear for controlled launches and progresses through ratios engineered to reduce engine speed at higher cruising velocities. Sixth gear carries an overall ratio of 2.875, supporting relaxed highway operation and reduced mechanical strain. The transmission layout contributes to stable acceleration characteristics while maintaining predictable shift response across varying riding situations.
Structural Design and Chassis Composition
The chassis uses a mild steel tubular frame with a two-piece stamped and welded backbone. Cast and forged junctions reinforce high-load areas, while twin down-tubes increase rigidity and maintain structural alignment under load. The rear frame section is bolt-on with forged fender supports, allowing serviceability and structural consistency. The swingarm is constructed from mild steel with two-piece drawn and welded sections supported by forged junctions. All key structural elements use MIG welding for consistent joint strength.
Handling geometry includes a 26-degree steering head angle and a 29.25-degree fork angle, producing a trail measurement of 6.7 inches. The wheelbase measures 64 inches, supporting straight-line stability and controlled steering response. The motorcycle length is 94.9 inches, with an overall width of 38.4 inches and height of 53.1 inches. Seat height is listed at 26.4 inches laden and 28.1 inches unladen. Static ground clearance measures 5.5 inches, supporting touring stability while maintaining manageable rider access.
Suspension Engineering and Ride Control
Front suspension uses a 49 mm Dual Bending Valve fork designed to improve damping consistency and control front-end movement during braking or on uneven road surfaces. This design helps maintain steering precision and tire contact during directional changes. Rear suspension consists of dual outboard emulsion shocks offering preload adjustability. Adjustment capability supports rider and cargo variations while maintaining balanced chassis posture.
Front suspension travel measures 4.6 inches, while rear travel measures 3 inches. These specifications indicate an emphasis on stability and comfort rather than extreme vertical movement. Suspension design aligns with the motorcycle’s touring focus, enabling predictable handling over extended distances while managing road irregularities with a controlled damping response.
Wheels, Tires, and Braking System Integration
The 2026 Harley-Davidson® Street Glide® uses cast aluminum wheels with a 19-inch diameter front wheel and an 18-inch diameter rear wheel. Front tire specification is 130/60B19, while the rear tire specification is 180/55B18. Both tires belong to the Dunlop® Harley-Davidson® Series bias blackwall configuration. The combination provides balanced grip, controlled steering input, and stable load capacity suitable for touring operation.
Braking components include dual floating front rotors paired with four-piston fixed dual axially mounted calipers. The rear brake uses a fixed rotor with a single axially mounted caliper. Front rotor diameter measures 12.6 inches with a thickness of 0.18 inches, while the rear rotor measures 11.8 inches with a thickness of 0.28 inches. Anti-lock Braking System functionality is included as standard equipment. Electronic Linked Braking coordinates front and rear braking behavior for improved stability during deceleration. This system integration helps distribute braking forces more effectively and supports controlled stopping performance.
Performance Metrics and Operating Efficiency
Engine testing follows J1349 standards for torque measurement. Power output is recorded at 105 horsepower, and torque performance peaks at 130 foot-pounds. Lean angle measurements indicate 32 degrees on both the right and left sides under SAE J1168 testing methodology. These figures provide an indication of cornering clearance aligned with touring applications.
Fuel capacity is specified at 6 gallons, with a reserve fuel warning corresponding to approximately 1 gallon. Fuel economy estimates are rated at 44 miles per gallon, supporting extended riding range between refueling intervals. Oil capacity with filter is listed at 5 quarts, transmission capacity is 1 quart, and primary chain case capacity is 1.1 quarts. Cooling system capacity is specified at 0.82 quarts. Weight as shipped measures 774 pounds, increasing to 811 pounds in running order. Gross vehicle weight rating reaches 1,360 pounds, with front and rear axle ratings of 500 pounds and 927 pounds, respectively. Luggage volume measures 2.42 cubic feet, supporting integrated touring storage needs.
Electrical System and Lighting Configuration
The motorcycle uses a sealed 12-volt maintenance-free battery rated at 28 amp-hours and 405 cold-cranking amps. Charging duties are managed by a three-phase 58-amp system capable of a maximum output of 754 watts at 13 volts. Starting function uses a 1.6 kilowatt electric starter with solenoid shift engagement for consistent ignition performance.
Lighting systems use LED technology throughout. The headlamp, tail and stop lamp, front signals, and rear turn signals all operate using LED assemblies, supporting energy efficiency and clear visibility. Digital gauges are integrated into the central display, minimizing separate instrumentation components. A 15-watt USB-C electric power outlet is positioned within the media storage area to support charging of compatible devices.
Infotainment and Digital Interface Systems
The infotainment platform uses Skyline™ OS with a 12.3-inch full-color TFT display. This screen integrates navigation, media, communication, and vehicle data into a centralized interface. Audio output is supported by two 5.25-inch fairing speakers with 50 watts per channel. Standard radio support includes AM and FM functionality. USB connectivity supports compatible storage devices and smartphone integration through USB-C connections.
Phone connectivity is available through Bluetooth® and Apple CarPlay® compatibility, supporting wireless or wired connection methods. Hands-free mobile phone functionality is included, along with headset compatibility for rider and passenger communication when equipped with compatible accessories. Integrated navigation functions support route management through the display system. Vehicle information such as air temperature, oil pressure, and EITMS data appears within the digital interface, reducing the need for separate instrumentation modules.
Rider Safety Technologies and Cornering Control
Rider safety enhancements include multiple electronically controlled systems designed to support stability during acceleration, braking, and directional changes. Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-torque Slip Control System, and Vehicle Hold Control are included. These systems monitor operating conditions and intervene when traction or braking thresholds approach predefined limits.
Cornering enhancements expand these functions by adapting system response during lean angles. Cornering Enhanced ABS, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control, and Cornering Drag-torque Slip Control operate using sensor-based inputs to maintain consistent behavior while cornering. Tire Pressure Monitoring System functionality adds ongoing monitoring of tire conditions, supporting operational safety and maintenance awareness.
